Enzyme-modified indium tin oxide microelectrode array-based electrochemical uric acid biosensor

Surface morphology

The surface characterization of the biosensor was carried out by taking the AFM images of the modified electrode before and after the enzyme immobilization. The AFM image of the APTES/ITO-μEA/glass (Figure  ³ a) shows densely arrayed APTES molecules with an average image height of 8.6 nm, which is more than the average thickness of APTES monolayer of 3 to 5 nm, indicating a strong polarity in the amino end group of APTES molecule resulting in increased inclined angle of the APTES molecule chain. This makes the APTES molecule chain more disordered and get piled up easily ([ ^{Wang et al. 2005} ]). The AFM image of uricase-immobilized APTES/ITO-μEA/glass (Figure  ³ b) exhibits a regular island-like structure. Since the lateral size of the visible image depends upon the convolution effect that arises between the sample and the AFM tip, an increase of about 8 nm in height in the AFM image was found with the uricase-modified APTES/ITO-μEA/glass surface. This increase in the height of the image is in accordance with the size of the uricase molecule ([ ^{Akgöl et al. 2008} ]).

Figure 3

Electrochemical characterization of uricase/BS3/APTES/ITO-μEA/glass electrode

The uricase/BS ³ /APTES/ITO-μEA/glass was characterized by cyclic voltammetry and electrochemical impedance spectroscopy. All electrochemical measurements were performed in phosphate-buffered saline (PBS) solution (pH 7.4) containing 0.1 M KCl and 2 mM [Fe(CN) ₆ ] ³⁻ under a PDMS-made microchannel. Figure  ⁴ shows cyclic voltammograms of the modified electrode before and after the enzyme immobilization. The inset shows a magnified view of CVs that correspond to BS ³ /APTES/ITO-μEA/glass and uricase/BS ³ /APTES/ITO-μEA/glass electrode.

Figure 4

In all CV experiments, the third cycle was considered as a stable one since no significant changes were observed in the subsequent cycles. The bare ITO-μEA/glass shows a quasi-reversible cyclic voltammogram with a peak-to-peak separation between the oxidation and reduction potential (Δ E _p ) of 166.51 mV. Upon modification with SAM of APTES, it shows a more reversible signal with decreased Δ E _p of 144.86 mV between the oxidation and reduction peaks and increased oxidation and reduction current of the redox probe. This is attributed to an increased interfacial concentration of the anionic probe [Fe(CN) ₆ ] ³⁻ due to its strong affinity towards the polycationic (NH ₂ ) layer ([ ^{Zhao et al. 2005} ]). A further modification with a cross-linker, bis[sulfosuccinimidyl]suberate, results in a significant increase in Δ E _p of 152.50 mV with a reduction in the redox current due to a repulsive interaction of polyanions (SO ₃ −) with the anionic probe [Fe(CN) ₆ ] ³⁻ , at the surface interface, confirming the formation of a cross-linker, BS ³ , layer over the surface of APTES/ITO-μEA/glass. This trend of CV curve with an increased Δ E _p of 195.32 mV and a decreased redox current was further observed after the immobilization of enzyme molecules at the surface of the modified electrode (BS ³ /APTES/ITO-μEA/glass). This indicates an efficient covalent bonding of insulating enzyme molecules to APTES/ITO-μEA/glass through the cross-linker BS ³ , which perturbs the interfacial electron transfer considerably, at the electrode surface.

The electrochemical behavior of the modified electrode was characterized by EIS, using an AC signal of 5-mV amplitude, at a formal potential of the redox couple, at a frequency range of 1 to 100,000 Hz. The Nyquist plot, given in Figure  ⁵ , shows the impedance spectra taken in each step of the surface modification. The Nyquist plot was fitted using Randles equivalent circuit, as shown in the inset of Figure  ⁵ , and a computer software evaluated EIS parameters. The impedance spectrum showed a semicircle region over a high-frequency range and a linear part at low frequencies, the radius of which corresponds to the charge transfer resistance ( R _et ). The impedance result is modeled by an electronic equivalent circuit, shown in the inset, for the solution resistance (Rs), the Warburg impedance (Zw), which resulted from the diffusion of ions in a bulk electrolyte, the double layer capacitance (Cdl), and the R _et for the electrochemical reaction ([ ^{Randles 1947} ]). Figure  ⁵ shows the electrochemical impedance spectra of the bare and the modified ITO-μEA/glass before and after the immobilization of the enzyme uricase, and the corresponding electron transfer resistance values are listed in Table  ¹ . The bare ITO-μEA/glass shows an R _et value of 2.11 KΩ cm ² which decreased to 1.10 KΩ cm ² upon treatment with APTES, indicating an easy electronic transport at the electrode surface interface. However, further treatment with a cross-linker, BS ³ , and on subsequent immobilization with the enzyme uricase result in increased R _et values of 2.90 and 5.17 KΩ cm ² , respectively. The results obtained in EIS are in well agreement with the trend observed in CV measurements, which further confirms the formation of the uricase/BS ³ /APTES/ITO-μEA/glass.

Figure 5

Amperometric response of uricase/BS3/APTES/ITO-μEA/glass

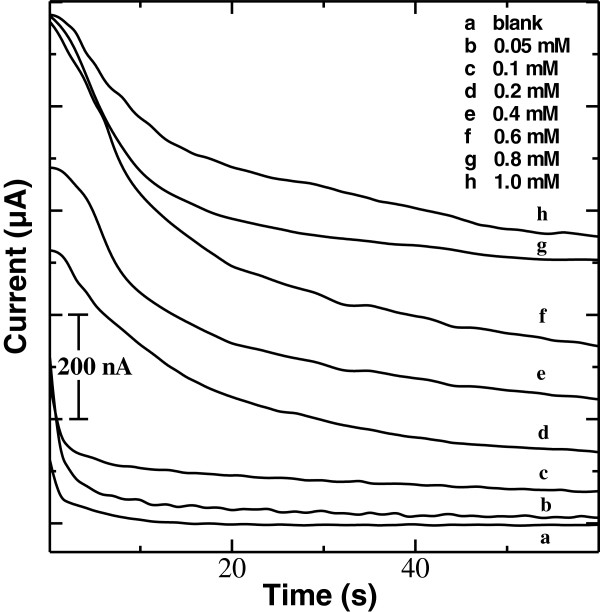

Chronoamperometric response study was carried out with uricase/BS ³ /APTES/ITO-μEA/glass as the working electrode at a bias voltage of 0.26 V vs. Ag/AgCl in PBS (pH 7.4) containing 2 mM [Fe(CN) ₆ ] ³⁻ as the redox mediator. Figure  ⁶ shows a chronoamperometric response of the uricase/BS ³ /APTES/ITO-μEA/glass electrode as a function of uric acid concentration in PBS, in the presence of a redox mediator. An increasing order of amperometric response was observed with increasing uric acid concentration, and 95% steady-state current response to uric acid was obtained in about 40 s.

Figure 6

Figure  ⁷ shows the steady-state current dependence calibration curve to uric acid concentration. The amperometric response of the device to uric acid concentration was found to be linear in the range of 0.058 to 0.71 mM with a correlation coefficient of 0.992 ( n = 5). The lowest detection limit of the electrode was 0.0084 mM at a signal-to-noise ratio of 3. The sensitivity of the enzyme electrode was calculated from the slope ( m ) of the linearity curve, and it was found to be 46.26 μA mM ⁻¹ cm ⁻² . The stability of the biosensor was studied, under the storage condition of 4°C to 5°C, by continuously monitoring the current response for 0.6 mM uric acid, at an interval of 1 week. The biosensor retained its current response to uric acid with a slow decrement of about 12% over a period of 6 weeks. The biosensor shows a sharp decrement up to about 40% to its initial activity on the basis of amperometric current response that might be due to the limited stability of the enzyme over the silane matrix over a period of time.

Figure 7

Materials

The enzyme uricase (EC 1.7.3.3, 9 units mg ⁻¹ from Bacillus fastidiosus ) was procured from Sigma-Aldrich Corp. (St. Louis, MO, USA). APTES was purchased from Merck Chemicals (Darmstadt, Germany). BS ³ was obtained from Pierce Biotechnology (Rockford, IL, USA). Uric acid with 99% purity was purchased from CDH (New Delhi, India). Positive photoresist 1300–31 was purchased from Shipley (Marlborough, MA, USA), and negative photoresist SU-8-2025 is from MicroChem Corp. (Newton, MA, USA). Sylgard 184 PDMS was purchased from Dow Corning (Midland, MI, USA). Other chemicals were of analytical grade and used without further purification.

Apparatus

AFM images were obtained on a VEECO/diCP2 scanning probe microscope (Plainview, NY, USA). CV and EIS measurements were done on a PGSTAT302N AUTOLAB instrument from Eco Chemie (Utrecht, The Netherlands). Impedance measurements were performed in the presence of a redox probe, [Fe(CN) ₆ ] ³⁻ , at scanning frequencies from 1 to 100,000 Hz. All measurements were carried out on a three-electrode system with uricase/BS ³ /APTES/ITO-μEA/glass as the working electrode, Ag/AgCl as the reference electrode, and platinum as the counter electrode.

Fabrication of uricase/BS3/APTES/ITO-μEA/glass-embedded microfluidic device

The ITO-coated glass plates (2 × 3 cm ² ) with a typical resistance of approximately 40 Ω were cleaned by ultrasonic cleaning, in chronological order, in soapy water (Extran, Merck Millipore, Billerica, MA, USA), acetone, ethanol, isopropyl alcohol, and double-distilled (DD) water for 10 min each, and drying in vacuum. These cleaned ITO glass plates were then exposed to oxygen plasma in a plasma chamber for 5 min. SAM of APTES was prepared over an ITO glass plate by immersing it in 2% ethanolic solution of APTES for 1.5 h, under ambient conditions. The glass plate was then rinsed with ethanol in order to remove the majority of non-bonded APTES from the surface of the substrate and dried it under N ₂ .

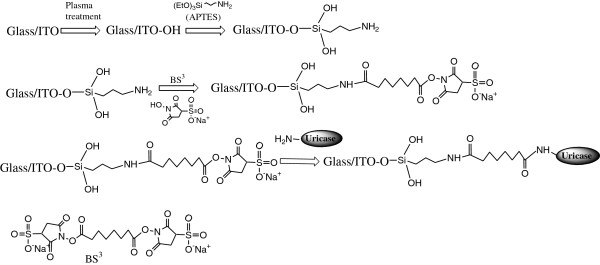

A three-electrode system with a pattern of μEA (1.45 mm ² ) as the working electrode and Ag/AgCl and Pt as the reference and counter electrodes, respectively, was printed over a glass plate. The μEA pattern was transferred over an APTES-coated ITO-glass by photolithography using Shipley positive photoresist 1300–31, followed by etching of remaining exposed ITO coating by treating with a suspension of zinc dust and dilute HCl. The ITO-μEA is composed of 42 interconnected microbands having a band width of 65 μm and a band length of 225 μm with an interspacing bandgap of 65 μm, prepared according to a procedure reported earlier ([ ^{Chen and White 2011} ]). The Ag pattern was deposited over the glass plate by e-beam evaporation technique, followed by treatment with 1 mM solution of FeCl ₃ for 10 s, and washed with DD water to obtain an Ag/AgCl reference electrode ([ ^{Polk et al. 2006} ]). The APTES/ITO-μEA/glass electrode was then modified with SAM of BS ³ by treating it with 5 mM BS ³ solution prepared in sodium acetate buffer (pH 5.0) for 1.0 h, washed with DD water, and dried under N ₂ . The BS ³ -treated APTES/ITO-μEA/glass electrode (BS ³ /APTES/ITO-μEA/glass) was immersed in PBS solution containing approximately 3 U of uricase (pH 7.4) for a period of 1.5 h. The enzyme electrode so formed was washed thrice with PBS (pH 7.4) to remove the excess unbound enzyme and was finally dried under N ₂ at room temperature and stored at 4°C.

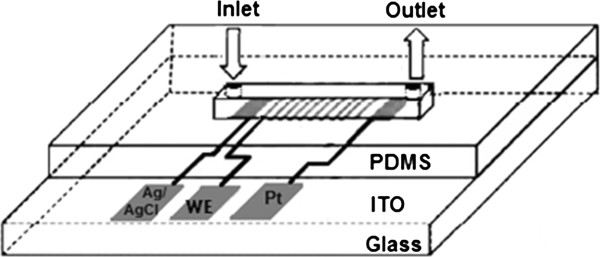

A PDMS microfluidic channel was prepared to deliver a controlled sample volume over a glass plate comprising a three-electrode system with a pattern of a uricase/BS ³ /APTES/ITO-μEA/glass working electrode, Ag/AgCl reference electrode, and Pt counter electrode for response measurement. A master was created with Shipley negative photoresist SU-8-2025 on a smooth glass plate by spin coating with a speed of 1,000 rpm and exposing through a photomask under highly intense UV light for 20 s. The resulting master structure was used as a mold to create PDMS blocks equipped with microfluidic channels of 75 μm in height and 0.5 mm × 16 mm area with sample inlet and outlet ports ( D = 1 mm) punched at the two ends of the microchannel for fluid flow.
