We reported here the preparation, characterization, and catalytic ability of a Fe ₃ O ₄ –supported palladium–carbon (Fe ₃ O ₄ –Pd–C) as an efficient catalyst in disproportionation of gum rosin. The magnetic nanocatalyst was prepared by a simple method and was characterized by FTIR, XRD, TEM, N ₂ adsorption–desorption, VSM, and atomic absorption analysis. The prepared catalyst displayed excellent activity in disproportionation of gum rosin. The magnetic Fe ₃ O ₄ –Pd–C catalyst was successfully recycled three times with keeping its catalytic performance. The simplicity of the nanocatalyst production method and simple separation and recyclability, on the other hand, make possible the industrial production and application of the catalyst.

Introduction

Active carbon due to high surface area, an open pore structure, excellent thermal and chemical stability, and low price is widely used as catalyst support and adsorbent, and finds extensive uses in the chemical and pharmaceutical-manufacturing industries [ ¹ , ² – ³ ]. However, carbon-supported catalysts are difficult to separate from reaction mixture and need special filtration system (Fig. ¹ ), and then using them in large scales has been limited [ ⁴ ].

Filtration system for remove palladium–carbon catalyst from reaction mixture

An attractive alternative to filtration or centrifugation is magnetic separation [ ⁵ , ⁶ , ⁷ – ⁸ ]. Magnetic separation method due to simplicity, high efficiency, and low cost has been widely used. In this regard, many researches are concentrating on modified active carbon [ ⁹ , ¹⁰ , ¹¹ – ¹² ]. For example, recently, Schuth et al. have reported in situ preparation of magnetic-activated carbon by formation of Fe ₃ O ₄ nanoparticles in the pores of carbon [ ⁹ ]. More recently, preparation of activated maize cob coated with magnetic nanoparticles have been reported by Morad et al. for methylene blue (MB) adsorption [ ¹⁰ ]. Kakavandi et al. used magnetic-activated carbon for removal of aniline [ ¹¹ ]. Mohan et al. used magnetic-activated carbon for tri-nitrophenol removal from aqueous solution [ ¹² ]. However, in the most of these reports, magnetic active carbon is used as an absorbent, and research on modified carbon using magnetic nanoparticles as a support for application in catalytic reaction has not been reported before.

In our recently efforts, we have found that the activated carbon-supported palladium nanoparticles are an efficient nanocatalyst for the disproportionation of rosin [ ¹³ ]. Here in, the catalytic activity of magnetic palladium–carbon for disproportionation of rosin is reported.

Experimental section

Chemicals

All reagents and chemicals were purchased from the Daejung, Merck and Aldrich companies, and gum rosin was obtained as a gift from Padideh Shimi Jam Co.

Preparation of the activated carbon-supported palladium nanoparticles (Pd–NP–AC)

Twenty grams of activated carbon was dispersed in 50 ml distilled water at 80 °C. One gram of palladium metal was dissolved in aqua regia (4 ml) and added to the reaction mixture. After 2 h, the resulting black solid was filtered and washed by the use of distilled hot water for three times. The sample was dispersed in 60 ml distilled water, and using 2 M sodium hydroxide solution the p H was increased to 9. Next, 60 ml formaldehyde solution (37%) was added to the reaction. After 2 h at 80 °C, the resulting solid was filtered and washed using hot water and dried at 105 °C.

Preparation Fe3O4–palladium–active carbon (Fe3O4–Pd–C)

FeCl ₃ ·6H ₂ O (8.7 mmol) and FeCl ₂ ·4H ₂ O (4.3 mmol) were dissolved in distilled water at N ₂ atmosphere. Subsequently, at 90 °C, 15 ml ammonia (25%) and 1 g of palladium–active carbon were added to the reaction mixture. After 30 min, the formed Fe ₃ O ₄ –Pd–C was collected with a magnet, washed three times with distilled hot water and dried at 105 °C. Fe ₃ O ₄ nanoparticles were individually prepared according to the above procedure without adding palladium–carbon.

General procedure for gum rosin disproportionation by Fe3O4–Pd–C

In a three-neck flask fitted with a stirrer, condenser, and thermometer, 100 g of gum rosin was heated under N ₂ atmosphere. Once temperature of reaction was reached to 280 °C, and a sample was withdrawn. Subsequently, Fe ₃ O ₄ –Pd–C was added to reaction flask and more samples were withdrawn every 1 h. A gas chromatography analysis was performed for a quantitative analysis of the samples [ ¹³ ].

Recyclability of Fe3O4–Pd–C catalyst

To recycle the Fe ₃ O ₄ –Pd–C catalyst, the catalyst was collected by a magnet, washed with iso-propanol, and dried at 80 °C.

Result and discussion

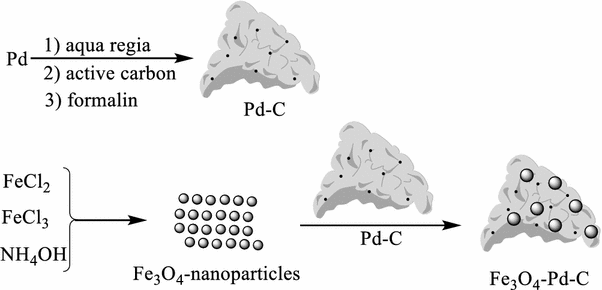

The Fe ₃ O ₄ –Pd–C catalyst was prepared by a simple co-precipitation of iron precursors (Fe ²⁺ and Fe ³⁺ ) and palladium–carbon (Fig. ² ).

Schematic image to preparation Fe ₃ O ₄ –Pd–C catalyst

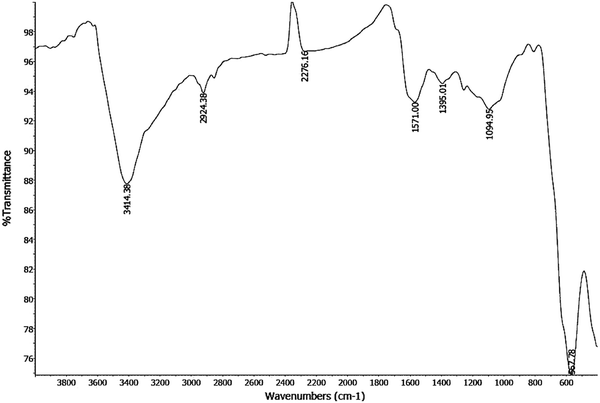

Figure ³ shows the FTIR spectra of the magnetic Fe ₃ O ₄ –Pd–C in the 400–4000 cm ⁻¹ wave number range. The IR adsorption band in 567.78 cm ⁻¹ is attributed to the Fe–O bonds. The broad band between 3000–3700 cm ⁻¹ region is attributed to the hydroxyl groups. The peaks at 1094–1571 cm ⁻¹ are ascribed to the presence of active carbon [ ¹² , ¹⁴ ]. Therefore, it can be concluded that Fe ₃ O ₄ nanoparticles were supported successfully on the palladium–carbon.

The X-ray diffraction peaks (XRD) of the Fe ₃ O ₄ (Fig. ⁴ ) and Fe ₃ O ₄ –Pd–C are presented in Fig. ⁵ . Six strong diffraction peaks at 2 θ = 30.3, 35.7, 43.4, 53.9, 57.8, and 63.1, which are related to the (220), (311), (400), (422), (511), and (440) phases of Fe ₃ O ₄ (JCPDS Card no. 88-0315, a = 8.375 Å), were found in the XRD patterns of Fe ₃ O ₄ and Fe ₃ O ₄ –Pd–C. In the spectra of the Fe ₃ O ₄ –Pd–C, narrow peaks at 2 θ = 40.1° and 46.6° and 67.9° were related to the presence of Pd [ ¹⁵ ], and the mass loadings of Pd were determined to be 2.46% w/w by atomic absorption analysis. The broadening of the 2 θ = 10–30° in the spectra of the Fe ₃ O ₄ –Pd–C is related to activated carbon.

The crystal size of the Fe ₃ O ₄ nanoparticles was calculated using Scherrer’s equation [ ¹⁶ ]. The determined particle size for Fe ₃ O ₄ nanoparticles in the Fe ₃ O ₄ and Fe ₃ O ₄ –Pd–C came out to be 28 nm and 7.5 nm, respectively. This reveals that during the synthesis of the Fe ₃ O ₄ nanoparticles, Pd–C prevents aggregation of these nanoparticles and because of that Fe ₃ O ₄ nanoparticles loaded on activated carbon had the smallest sizes.

The lattice strain and dislocation density were 1.2 × 10 ⁻³ and 3.9 × 10 ⁻² m ⁻² for Fe ₃ O ₄ and 1.7 × 10 ⁻² and 1.5 × 10 ⁻² m ⁻² for Fe ₃ O ₄ –Pd–C, respectively, and were calculated from Eq. ( ¹ ) and ( ² ) where ‘ D ’ and ‘ β ’ are the crystallite size and the full width at half maximum (radian), respectively [ ¹⁶ ]. Small strain value indicates good crystallinity.

δ=1D2

ε=βhkl4tanθ

Figure ⁶ shows the transmission electron microscopy (TEM) images of the palladium–carbon (Pd–C) and Fe ₃ O ₄ nanoparticles. In the TEM of Pd–C, palladium with high atomic number blocked partial electrons from TEM electron beam, and this made the palladium nanoparticles dark under TEM [ ⁵ ]. TEM images of Pd–C reveal that palladium nanoparticles are well dispersed on activated carbon and the size of Pd particles is about 10–45 nm. The TEM image of Fe ₃ O ₄ clearly shows that synthesized nanoparticles are distributed uniformly and have an average size of 10–30 nm.

a TEM of Fe ₃ O ₄ nanoparticles (scale 50 nm) and b Palladium–carbon (scale 200 nm)

The N ₂ adsorption–desorption isotherm of the Fe ₃ O ₄ –Pd–C show type IV pattern with hysteresis (H3) loops at relative pressure of 0.6–1.0 (Fig. ⁷ ). Brunauer–Emmett–Teller (BET) analysis indicated that surface area of the Fe ₃ O ₄ –Pd–C is 487.7 m ² /g, while total pore volume is 0.0407 cm ³ /g. The pore size diameter was calculated be 2.582 nm. The high surface area (487.7 m ² /g) may be beneficial to enhancing the catalytic activity of Fe ₃ O ₄ –Pd–C catalyst.

Adsorption/desorption isotherm of Fe ₃ O ₄ –Pd–C catalyst

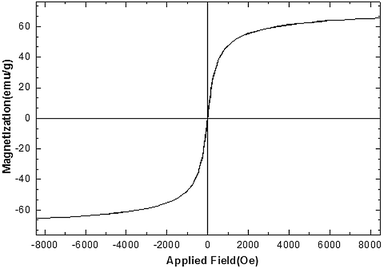

The magnetically controllable aggregation behavior of Fe ₃ O ₄ –Pd–C was investigated by vibrating sample magnetometer (VSM) studies. Figures ⁸ and ⁹ show the VSM curves of the Fe ₃ O ₄ and Fe ₃ O ₄ –Pd–C, respectively, measured by the Meghnatis Daghigh Kavir Company (Iran). Fe ₃ O ₄ and Fe ₃ O ₄ –Pd–C show superparamagnetic behavior, and the saturation magnetization was determined to be 65.5 and 25.0 emu g ⁻¹ , respectively.

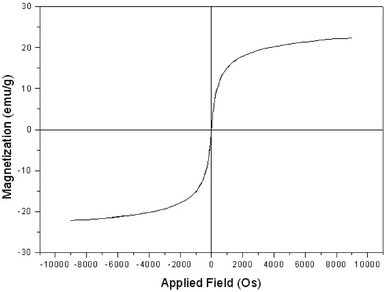

VSM curve of the Fe ₃ O ₄ –Pd–C catalyst

Gum rosin is one of the important renewable forestry products and approximately 90% of the gum rosin is the abietic-type resin acid with a conjugated double bond (Fig. ¹⁰ ) [ ¹⁷ ]. By the use of a catalytic disproportionation reaction, the highly reactive conjugated double bond in abietic-type resin acid can be modified. Due to its advantages, i.e., high oxidation resistance, high softening point, low brittleness, and very good color stability, disproportionated rosin (DPR) has proved to be superior quietly to rosin in many applications.

Here in, the catalytic activity of Fe ₃ O ₄ –Pd–C in the synthesis of DPR from gum rosin was studied, and the reaction was checked by gas chromatography (GC) analysis [ ¹³ ]. A control experiment showed that Fe ₃ O ₄ and Fe ₃ O ₄ –active carbon could not catalyze this disproportionation reaction, and the presence of palladium is essential. When the reaction was carried out with Fe ₃ O ₄ –Pd–C (0.1% w/w), dehydroabietic acid was obtained in 65% yield after 6 h. If the reaction temperature is decreased from 280 to 220 °C, dehydroabietic acid will obtain in 19.6% yield. After evaluation of the catalytic activity of Fe ₃ O ₄ –Pd–C, optimization shows that the best result was obtained by using of 0.25% w/w of Fe ₃ O ₄ –Pd–C with an optimal reaction temperature of 280 °C. In this condition, dehydroabietic acid was obtained in 74% yield after 1 h.

To recycle the Fe ₃ O ₄ –Pd–C catalyst, the magnetic catalyst was collected by a magnet, washed with iso-propanol for three times, and dried. At least, the Fe ₃ O ₄ –Pd–C catalyst was stable and reusable for three reaction runs (Table ¹ ).

Table 1

Reusability test of catal

DAA % First run	DAA % Second run	DAA % Third run
74	69.5	68

Acknowledgements

We are thanks the INSF (Iran National Science Foundation), Tarbiat Modares University and Padideh Shimi Jam Co. for supporting of this work.
