Abstract
Ceria plays a key role in various applications including sensing and catalysis owing to its high oxygen storage capacity (OSC). The aim of this work is to prepare novel MO
x
/CeO
2
(M: Zr, Ti, Cu) metal oxide systems with core/shell structures using a facile two-step chemical precipitation method. The synthesized nanoparticles were characterized using X-ray diffraction (XRD), transmission electron microscopy (TEM), and N
2
adsorption methods. The OSC property of the samples was evaluated using TGA analysis conducted at 600 °C under reductive (5% H
2
/Ar) and oxidative (synthetic air) environments. The OSCs of the samples were found to be 130, 253, and 2098 µmol-O
2
/g for ZrO
2
/CeO
2
, TiO
2
/CeO
2
, and CuO/CeO
2
, respectively. Effects of heat treatment on the physical and redox properties of the samples were also evaluated. In this regard, the samples were exposed to 500 °C for 5 h under ambient environment. It was observed that the heat treatment induced the formation of mixed metal oxide alloys and the BET surface area of the samples diminished significantly. The OSC of the samples, however, did not experience any significant chance, which was attributed to the compensation of the loss in the surface area by the alloy formation after the heat treatment.
Introduction
Ceria (CeO
2
) and ceria-based nanomaterials have attracted great deal of interest for many applications ranging from cosmetic and sensing to catalysis due to their high redox properties [
1
,
2
,
3
,
4
–
5
]. The high redox property of CeO
2
, which is also called as oxygen storage capacity (OSC), originates from the capability of binding O
2
reversibly by shifting from Ce
3+
to Ce
4+
states under oxygen-rich and oxygen-lean environments, respectively [
3
,
6
]. Its high OSC property makes CeO
2
-based materials one of the key components in three-way catalysts in the automotive industry. It is known that the exhaust gas has fluctuations in O
2
content and the concentration of O
2
in the gas stream goes down and up, resulting from deviations in the stoichiometric air/fuel ratio. To remove the pollutants from the exhaust gas effectively, the stoichiometric ratio must be maintained [
7
]. The use of CeO
2
-based materials in three-way catalyst systems as a promoter ensures the maintenance of the air/fuel stoichiometry by acting as oxygen buffer under the mentioned conditions. The reversible oxygen release and uptake property of CeO
2
is shown in Eq.
1
[
8
].
2CeO2↔Ce2O3+1/2O2.
It was reported that the OSC property is highly depended upon the morphology, composition, and the physical surface area of CeO
2
[
9
,
10
]. The modification of CeO
2
lattice with dissimilar ions yields enhanced OSC by creating additional O
2
defects in the structure, which results in higher O
2
mobility. The introduction of Zr
4+
ions into the CeO
2
lattice, for example, produces higher oxygen defects in the structure in quantity due to the formation of distortions in the fluorite-type structure of CeO
2
. These distortions are associated with the difference in the ionic radius of Ce
4+
and Zr
+4
[
11
,
12
]. The modification of the lattice with secondary ions such as Cu
2+
with different oxidation states than Ce
4+
leads to the formation of additional structural defects associated with the neutralization of the total charge in the mixed metal oxide system [
7
]. In our previous work, we showed that the formation of the additional structural defects is beneficial for enhanced lattice oxygen transport which in turn results in higher OSC [
7
]. It was also reported that the enlarged physical surface area renders higher OSC [
13
,
14
]. That is reason of having higher redox property with CeO
2
and CeO
2
-based nanoparticles compared to those obtained from their bulk counterparts.
Despite its high OSC property, pristine CeO
2
is not favorable to be used in high-temperature applications, especially in three-way catalysis, owing to its low thermal stability. At high temperatures, the OSC of CeO
2
and CeO
2
-based materials was reported to be deactivated due to the sintering effect and phase separation [
15
,
16
–
17
]. The modification of CeO
2
lattice with secondary metal oxide systems, especially ZrO
2
, was found to be an effective way to enhance the thermal stability of these materials [
8
]. Although a great deal of attention has been paid to develop novel CeO
2
-based materials with higher thermal stability and sintering resistance, the decrease in the physical surface area of these catalytic materials is still a major challenge for high-temperature applications.
In this work, we aimed to prepare novel MO
x
/CeO
2
(M: Zr, Ti, Cu) metal oxide systems with core/shell structure using a facile two-step chemical precipitation method. To the best of our knowledge, the synthesis and characterization of these MO
x
/CeO
2
core/shell structures with high oxygen storage capacity have not been reported yet. For this purpose, first, MO
x
nanoparticles were synthesized and used as seeds for the formation of CeO
2
shells. The prepared core/shell nanoparticles were then physically characterized to using X-ray diffraction (XRD), transmission electron microscopy (TEM), and N
2
adsorption (BET) methods. Moreover, the OSC of the fresh and calcined samples was measured to determine the effect of the composition on the OSC and the thermal stability of the nanoparticles.
Materials and methods
Materials
TiCI
4
(99.0%) was purchased from Fluka. Reducing agent, NH
4
OH (28–30%), was bought from Science Lab. Ce(NO
3
)
3
·
x
H
2
O (99.999%), N
2
O
7
Zr·
x
H
2
O (99.0%), CuN
2
O
6
·
x
H
2
O (99.999%), NaOH were obtained from Aldrich. The chemicals were used as received.
Preparation of core/shell nanoparticles
MO
x
nanoparticles used as core in the core–shell structure was prepared via a chemical precipitation method conducted at room temperature. Briefly, required amounts of MO
x
(M: Zr, Ti, Cu) precursor were dissolved in distilled water to prepare 0.1 M stock solution. While 100 mL of metal oxide solution was stirring vigorously using a magnetic stirrer, excessive NH
4
OH solution (4 M, 0.25 mL) was added to the solution dropwise. The resulting solution was stirred for 1 more hour and left for aging overnight. MO
x
nanoparticles were collected by centrifuging after washing the nanoparticles five times with deionized water. Then, the nanoparticles were dried at 100 °C overnight and calcined for 5 h at 500 °C.
The synthesis of the core/shell nanoparticles was reported by Kanmani and Ramachandran [
18
]. Briefly, the prepared MO
x
nanoparticles were dispersed in an aqueous Ce(NO
3
)
3
·
x
H
2
O solution. The molar ratio of Ce
4+
to M
n+
was set to 1/1. After homogenization of the solution, 0.1 M NaOH solution (250 ml) was added to the precursor-containing beaker dropwise. The resultant mixture was left stirring for 5 h at room temperature to obtain a good dispersion. After that, the solution was stirred three more hours at 97 °C to form the core/shell structure.
Characterization of core/shell nanoparticles
X-ray diffraction (XRD) data of the samples were recorded using a Bruker D8 Focus X-ray Diffractometer equipped with Cu Kα (
λ
= 0.15406 nm) radiation. The XRD scans were conducted at the scan rate of 4° min
−1
over 2
θ
values between 20° and 70°. Debye–Scherrer equation was implemented to calculate the average crystalline size of the core/shell nanoparticles. An FEI Tecnai TEM operating at 200 kV was used to take the TEM images. The physical surface area of the samples was measured using N
2
adsorption–desorption analysis performed at −196 °C (a TriStar 300). Prior to the physisorption, the nanoparticles were degassed at 300 °C for 3 h.
The oxygen storage capacity of the core/shell nanoparticles was measured using an SDT 2960 DTA–TGA from TA Instruments. The samples were heated to 600 °C under reductive environment (5% H
2
/Ar, 100 mL/min) and waited until the mass of the sample stabilized. Then, oxidative (synthetic air) and reductive gases were fed to the sample alternatively and the mass change was used to calculate the average OSC in µmol-O
2
/g powder.
Results and discussions
Figure
1
shows the XRD results of the as-prepared core/shell ZrO
2
/CeO
2
, TiO
2
/CeO
2
, and CuO/CeO
2
nanoparticles. The peaks located at ca. 28.6°, 33.4°, 47.6°, and 56.6° correspond to the fluorite-type structure of CeO
2
(JCPDS 34-0394). For all core/shell compositions, secondary fluorite-type CeO
2
was observed showing the successful coating of MO
x
nanoseeds with CeO
2
by a simple two-step precipitation method without the use of any surfactant. MgO peaks indicated with asterisks in the XRD patters were used to have a standard to adjust the peak locations precisely to avoid any possible calculation errors in lattice parameters and average crystalline sizes. The XRD signals located at around 31.5° and 50.3° ascribed to tetragonal ZrO
2
phase. In addition, the XRD patterns of TiO
2
/CeO
2
and CuO/CeO
2
core/shell metal oxide systems revealed the presence of rutile TiO
2
and monoclinic CuO phases, respectively. The corresponding XRD signals are shown in Fig.
1
. The lattice parameter of CeO
2
coating was calculated using the XRD signal obtained from (220) peak because the first two CeO
2
peaks were interfered by the XRD signals of core phases. The lattice parameter values calculated using the Scherer’s equation were close to each other with a slight deviation for TiO
2
/CeO
2
core–shell (Table
1
). It is due to the fact that fresh samples were not exposed to any heat treatment which may result in the formation of mixed metal oxides. The physical surface area values of the core–shell nanoparticles were found to be 103.8, 100.6, and 131.9 m
2
g
−1
for ZrO
2
/CeO
2
, TiO
2
/CeO
2
, and CuO/CeO
2
nanoparticles, respectively. The results indicated that the modification of CuO surface with CeO
2
yielded the largest surface area among all samples, which is crucial for the enhanced OSC property.

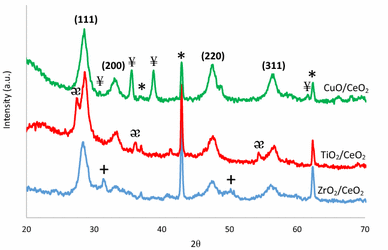

Fig. 1
XRD patterns of as-prepared core/shell nanoparticles (
*
: MgO,
+
: tetragonal ZrO
2
,
ӕ
: rutile TiO
2
, and
¥
: monoclinic CuO)
Table 1
Physical surface area, average crystalline size, and the lattice parameter values of the as-prepared core/shell nanoparticles
Sample
BET surface area (m2 g−1)
CeO2 lattice parameter, a (Å)
Average crystalline size of CeO2 (nm)
ZrO2/CeO2
103.8
5.43
17.3
TiO2/CeO2
100.6
5.38
12.8
CuO/CeO2
131.9
5.41
8.1
The morphology of the samples was studied using transmission electron microscopy (TEM). The TEM images taken at high magnifications are shown in Fig.
2
. It was observed that the shape of the nanoparticles was irregular and deviated from spherical shape. As seen from the figure, the CuO/CeO
2
composition had the smallest average particle size. Due to the similar contrasts of different metal oxide phases under the electron beam, it was not possible to see the core/shell structure clearly. To shed light on the core/shell structure, the inter-planar distance values shown in Fig.
2
b, d, f were used. The inter-planar distance of 0.31 nm corresponds to (111) plane of the fluorite-type CeO
2
structure [
19
]. The inter-planar distance values of 0.29, 0.35, and 0.25 nm are associated with ZrO
2
(111) [
20
], TiO
2
(101) [
21
], and CuO (002) [
22
] planes, respectively. This result indicated that the CeO
2
layer covered the surface of the MO
x
agglomerates. While the inner region of the agglomerates was rich in MO
x
, the outer layer was dominated by the CeO
2
shell, showing the formation of core/shell structure.
Fig. 2
TEM images of the samples
a
,
b
ZrO
2
/CeO
2
,
c
,
d
TiO
2
/CeO
2
, and
e
,
f
CuO/CeO
2
The OSC of the core/shell nanoparticles was calculated using the change in the mass resulted from the release and uptake of oxygen atoms from the structure (Fig.
3
) [
2
,
23
,
24
]. The TGA curves are shown in Fig.
3
. It was observed that compared to our previous report [
7
], the core–shell design of ZrO
2
/CeO
2
metal oxide nanoparticles resulted in a significant increase in the OSC of CeO
2
. The lowest oxygen storage capacity, however, was obtained from this composition among all synthesized samples. The OSC of the samples followed the order of ZrO
2
/CeO
2
< TiO
2
/CeO
2
< CuO/CeO
2
with the calculated values of 130, 253, and 2098 µmol-O
2
/g, respectively. Since the samples were not exposed to any heat treatment which may result in the formation of mixed metal oxide alloys, the enhanced OSC may be attributed to the larger physical surface area of the samples. While pristine CeO
2
had the BET surface area of 55.7 m
2
g
−1
(reported in our previous study), the core/shell design yielded much larger surface area exposing higher number of CeO
2
lattice on the surface. Since CeO
2
surface play a key role in the oxygen release and uptake property, higher number of exposed CeO
2
structures is accounted for the increased OSC. It is also noteworthy that when the XRD signals of pristine CeO
2
and core–shell nanoparticles were compared (not shown here), there were no significant shifts in the (111) peak locations of CeO
2
showing no alloying effect of MO
x
in the CeO
2
lattice. This result confirmed that the enhanced OSC values were mainly due to the enlarged surface area. When the calculated OSC values of the core/shell nanoparticles were compared with those obtained from theoretical calculation (listed in Table
2
), it is essential to note that the OSC of CuO/CeO
2
system was even higher than the theoretical value. This can be explained by the presence of distinctive monoclinic CuO phase which has a very high redox property. Besides the CeO
2
phase, the monoclinic CuO phase contributed to the OSC.
Fig. 3
TGA results of the fresh samples under oxidative and reductive environments at the temperature of 600 °C
Table 2
OSC values of the fresh samples calculated from the TGA data
Sample
BET surface area (m2 g−1)
OSC (µmol-O2/g)
Theoretical OSC (µmol-O2/g)a
ZrO2/CeO2
103.8
130
846
TiO2/CeO2
100.6
253
992
CuO/CeO2
131.9
2098
992
The prepared core/shell nanoparticles were calcined at 500 °C for 5 h under ambient atmosphere to evaluate the effects of heat treatment on the structure and OSC property of the samples. After the calcination process, the samples were characterized using XRD, N
2
adsorption, and TGA experiments.
The lattice parameter values and the average crystalline sizes of the fresh and aged samples are listed in Table
3
. It was observed that after the heat treatment, although it is expected to have higher crystalline size values due to the sintering effect, the average crystalline size of the CeO
2
decreased for all compositions but CuO/CeO
2
. This is due to the fact that the XRD peaks of MO
x
(Cu, Zr, Ti) are located at the close proximity to the characteristic CeO
2
peaks, resulting in the formation of shoulders in the CeO
2
signal. Due to this broadening effect, the FWHF values used to calculate the average crystalline size could not be determined precisely, which is responsible for the discrepancy in the calculated lattice parameter and average crystalline size values. Therefore, it will be wise to use the physical surface area values and location of the XRD peaks to evaluate the heat treatment effect on the physical properties of the core–shell nanoparticles. The XRD results of the calcined samples are shown in Fig.
4
a–c. It was observed that after the heat treatment, the characteristic peaks of the fluorite-type CeO
2
structure shifted to higher 2
θ
values, confirming the formation of CeO
2
–MO
x
solid solution. In addition to these shifts induced by the heat treatment, the peaks became narrower and sharper, which indicated larger average crystalline size. The BET surface area of the calcined samples is listed in Table
4
. Calcination of the core–shell nanoparticles induced a high degree of drop in the physical surface area. As expected, the CuO-containing composition experienced the highest drop in the surface area which was due to the low sintering resistance of CuO and CeO
2
phases. The higher thermal stability of ZrO
2
- and TiO
2
-containing samples is attributed to the interaction of Zr
4+
and Ti
4+
ions with Ce
4+
in the lattice [
7
].
Table 3
Physical surface area, average crystalline size, and the lattice parameter values of the as-prepared and calcined core/shell nanoparticles
Sample
CeO2 lattice parameter, a (Å)
CeO2 lattice parameter after calcination, a (Å)
Average crystalline size of CeO2 (nm)
Average crystalline size of CeO2 after calcination (nm)
ZrO2/CeO2
5.43
5.42
17.3
12.7
TiO2/CeO2
5.38
5.42
12.8
11.5
CuO/CeO2
5.41
5.41
8.1
10.6

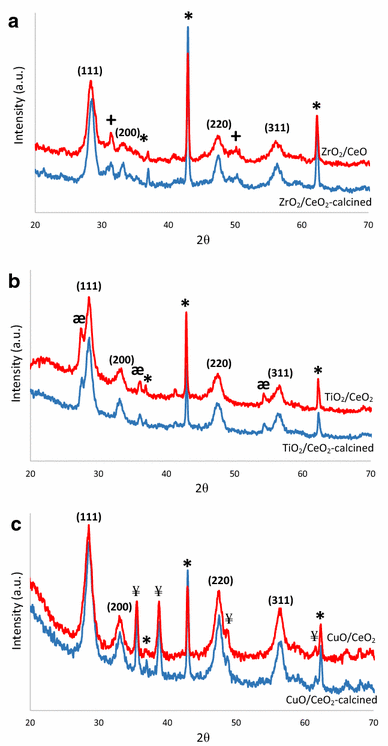

Fig. 4
XRD patterns of fresh and calcined
a
ZrO
2
/CeO
2
,
b
TiO
2
/CeO
2
, and
c
CuO/CeO
2
nanoparticles (
*
: MgO,
+
: tetragonal ZrO
2
,
ӕ
: rutile TiO
2
, and
¥
: monoclinic CuO)
Table 4
OSC and BET surface area values of the fresh and calcined samples
Sample
BET surface area of fresh sample (m2 g−1)
BET surface area of calcined sample (m2 g−1)
OSC of fresh sample (µmol-O2/g)
OSC of calcined sample (µmol-O2/g)
Theoretical OSC (µmol-O2/g)a
ZrO2/CeO2
103.8
70.6
130
120
846
TiO2/CeO2
100.6
62.7
253
255
992
CuO/CeO2
131.9
74.99
2098
2076
992
The OSC performance of the calcined samples is listed in Table
4
. It must be mentioned that although the physical surface area of the samples showed a significant drop with the calcination process, the same effect was not observed for the OSC properties of the core/shell nanoparticles. All the core/shell compositions showed similar OSC properties with their fresh counterparts after the calcination process. The TGA results of the calcined samples are shown in Fig.
5
. The results demonstrated that as mentioned earlier, the OSC of CeO
2
nanoparticles is governed not only by the physical surface area but also by the structural properties. The XRD patterns indicated the formation of metal oxide alloys by the shift in the characteristic peak locations. The formation of CeO
2
–MO
x
mixed metal oxide alloys induces the formation of additional structural defects including oxygen defects and distortions in the CeO
2
lattice. These additional defects are responsible for the maintenance of the high OSC properties of the calcined samples. In other words, the detrimental effect of the surface area drop by calcination was compensated by the increased number of structural defects, resulting in the maintenance of the OSC values.
Fig. 5
TGA results of the heat-treated samples under oxidative and reductive environments at 600 °C
Conclusions
In this work, ZrO
2
/CeO
2
, TiO
2
/CeO
2
, and CuO/CeO
2
core/shell nanoparticles were successfully synthesized via a two-step chemical precipitation process without the use of any surfactant. The XRD results indicated the presence of CeO
2
and MO
x
(M: Zr, Ti, Cu) phases. The physical surface area of the samples was determined to be 103.8, 100.6, and 131.9 m
2
g
−1
for ZrO
2
/CeO
2
, TiO
2
/CeO
2
, and CuO/CeO
2
nanoparticles, respectively, which were larger than that of pristine CeO
2
. The core/shell structure of the samples was analyzed using TEM, and the images confirmed the formation of core–shell structures. The OSC of the samples followed the order of ZrO
2
/CeO
2
< TiO
2
/CeO
2
< CuO/CeO
2
with the calculated values of 130, 253, and 2098 µmol-O
2
/g, respectively. The enhanced OSC of the core/shell nanoparticles was mainly attributed to the larger surface. The effect of heat treatment on the properties of the samples was evaluated by calcining the samples at 500 °C for 5 h under ambient atmosphere. The XRD peaks of the samples shifted to higher 2
θ
values showing the formation of CeO
2
–MO
x
mixed metal oxide alloys. The physical surface area of the samples, however, diminished after the calcination process. While the benefit of having large surface area for the enhanced OSC was lost after the heat treatment, the formation of metal oxide alloys yielded additional structural defects, resulting in the maintenance of the enhanced OSC.
References
Uzunoglu and Stanciu (2016) Novel CeO2–CuO-decorated enzymatic lactate biosensors operating in low oxygen environments (pp. 121-128) 10.1016/j.aca.2015.12.044
Dong et al. (2012) Ce0.5Zr0.4Sn0.1O2/Al2O3 catalysts with enhanced oxygen storage capacity and high CO oxidation activity (pp. 2521-2524) 10.1039/c2cy20425h
Benjaram et al. (2011) Nanosized unsupported and alumina-supported ceria–zirconia and ceria–terbia solid solutions for CO oxidation (pp. 800-806) 10.1016/S1872-2067(10)60227-6
Fu et al. (2001) Nanostructured Au–CeO2 catalysts for low-temperature water-gas shift (pp. 87-95) 10.1023/A:1012666128812
Uzunoglu et al. (2016) Layer by layer construction of ascorbate interference-free amperometric lactate biosensors with lactate oxidase, ascorbate oxidase, and ceria nanoparticles (pp. 1667-1675) 10.1007/s00604-016-1796-5
Trovarelli et al. (2001) Some recent developments in the characterization of ceria-based catalysts (pp. 584-591) 10.1016/S0925-8388(01)01181-1
Uzunoglu et al. (2015) CeO2–MOx (M: Zr, Ti, Cu) mixed metal oxides with enhanced oxygen storage capacity (pp. 3750-3762) 10.1007/s10853-015-8939-7
Wu et al. (2007) Role of surface adsorption in fast oxygen storage/release of CeO2–ZrO2 mixed oxides (pp. 416-421) 10.1016/S1002-0721(07)60448-7
Kim et al. (2007) Characteristics in oxygen storage capacity of ceria-zirconia mixed oxides prepared by continuous hydrothermal synthesis in supercritical water (pp. 57-63) 10.1016/j.apcatb.2006.08.015
Ran et al. (2012) Microstructure and oxygen storage capacity of Sr-modified Pt/CeO2–ZrO2 catalysts (pp. 7-14) 10.1016/j.pnsc.2011.12.002
Zhou et al. (2013) Effects of the structure of Ce–Cu catalysts on the catalytic combustion of toluene in air (pp. 3677-3683) 10.1016/j.ceramint.2012.10.199
Zhou et al. (2007) Oxidation enthalpies for reduction of ceria surfaces (pp. 2512-2519) 10.1016/j.susc.2007.04.238
Abdollahzadeh-Ghom et al. (2011) Improvement of oxygen storage capacity using mesoporous ceria–zirconia solid solutions (pp. 32-38) 10.1016/j.apcatb.2011.07.038
Schmieg and Belton (1995) Effect of hydrothermal aging on oxygen storage release and activity in a commercial automotive catalyst (pp. 127-144) 10.1016/0926-3373(95)00011-9
Epifani et al. (2012) Synthesis of ceria–zirconia nanocrystals with improved microstructural homogeneity and oxygen storage capacity by hydrolytic sol–gel process in coordinating environment (pp. 2867-2875) 10.1002/adfm.201200380
Kanmani and Ramachandran (2012) Synthesis and characterization of TiO2/ZnO core/shell nanomaterials for solar cell applications (pp. 149-156) 10.1016/j.renene.2011.12.014
Yang et al. (2016) Redox enzyme-mimicking activities of CeO2 nanostructures: Intrinsic influence of exposed facets10.1038/srep35344
Basahel et al. (2015) Influence of crystal structure of nanosized ZrO2 on photocatalytic degradation of methyl orange10.1186/s11671-015-0780-z
Unknown ()
Cheng and Chen (2012) Fabrication, characterization, and kinetic study of vertical single-crystalline CuO nanowires on Si substrates10.1186/1556-276X-7-119
Ouyang and Yang (2009) Investigation of the oxygen exchange property and oxygen storage capacity of CexZr1−xO2 nanocrystals (pp. 6921-6928) 10.1021/jp808075t
Chuang et al. (2009) Synthesis and characterization of Al2O3-Ce0.5Zr0.5O2 powders prepared by chemical coprecipitation method (pp. 387-392) 10.1016/j.jallcom.2008.02.078
