Study of conversion of butadiene to CO2 by rTiO2 nanoparticles: ZINDO/S

Introduction

The motor vehicles pollute the air more than any other activity of human [ ¹ , ² , ³ – ⁴ ]. By regular inspection and repair of engines and using clean fuel, entry of pollutants into the environment can be decreased [ ⁵ , ⁶ ]. The gases released by vehicles included unburned hydrocarbons, carbon monoxide and nitrogen oxides [ ⁷ , ⁸ ]. There are many ways to get better fuel burning. The main source of unburned hydrocarbon emissions from the automobile exhaust is the design of the combustion chamber. For better burning, fuel should have more contact with the combustion chamber wall, so the surface of the combustion chamber walls should be minimized as possible; for this, the chamber should be of spherical shape but practically it is not possible [ ⁹ , ¹⁰ – ¹¹ ]. Hydrocarbons in the fuel are composed of 20 species and 100 subspecies, of which the majority of them are in the exhaust gases, e.g., benzopyrene, formaldehyde, butadiene, etc. [ ¹² ].

The aim of this study is an evaluation of low-cost methods that can reduce many of these pollutants. Using suitable nano-filters in the exhaust of an automobile can be converted unburned hydrocarbons to low-risk compounds [ ¹³ , ¹⁴ , ¹⁵ – ¹⁶ ]. The titanium dioxide is include photo-chemistry material of the semiconductor and nano-magnets. TiO ₂ (titania) has some unique characteristics such as photo-physical and photocatalysts, if their dimensions are nanoscale, these features will appear. Because of smaller dimensions of semiconductor particles, there is increased number of atoms located on the surface, and increased surface to volume ratio. This gives greater access to active sites and is increasing the amount of electrical charge carrier transfer [ ¹⁷ ].

Therefore, the interaction of rutile titanium dioxide nanoparticles ( r TiO ₂ -NP) and butadiene is simulated by software GaussView 5.0.

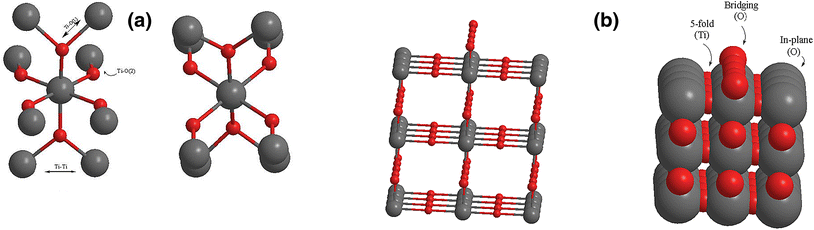

Butadiene interaction on different places of rutile titanium dioxide nanoparticles is simulated and is optimized. The geometric structures of converting them to low-risk products are calculated. Figure  ¹ is a model of the ball and spring for rutile titanium dioxide nanoparticles ( r TiO ₂ -NP), which shows the two views and another size for it [rutile TiO ₂ (110) nano-surface] [ ¹⁸ , ¹⁹ ]. In this study, rutile titanium dioxide nanoparticles ( r TiO ₂ -NP) are used, the pollutants close to the cross bridges of Ti–O (1), Ti–O (2) and Ti–Ti on r TiO ₂ -NP and the thermodynamic properties were evaluated by semi-empirical (ZINDO/S) method [ ²⁰ , ²¹ ].

Fig. 1

Computational methods

Basically, the behavior of titanium dioxide photocatalysts is dependent on the electrical structure and its dimensions. A nano-material may have a different behavior which is determined using electrical structure, quantum size and the effects of the surface [ ²² ]. The electronic structure design is important based on changes in the composition and physical structure. For this purpose, the thermodynamic and electrical properties of chemical process are calculated semi-empirically; the ZINDO/S method is widely used to calculate the heat of formation, the geometry of the molecule, ionization energy, electron continuity, and other features [ ²³ ]. The geometric structures are optimized by the DFT because the results could be obtained with a better accuracy [ ²⁴ , ²⁵ ].

Rutile is a body-centered tetragonal unit cell, with unit cell parameters a  =  b  = 4.584 Å, and c  = 2.953 Å. The titanium cations have a coordination number of 6 meaning they are surrounded byQuery an octahedron of 6 oxygen atoms. The oxygen anions have a coordination number of 3, they result in a trigonal planar coordinated structure. The rutile also shows a screw axis when its octahedra is viewed sequentially [ ²⁶ ]. This k-point grid constrained the total energy within 0.01 eV Å ⁻¹ /atom and the diagonal elements of the response matrix within 1%. However, convergence of the final results was not achieved, due to numerical instability of the inversion of a near-singular matrix. A cutoff of 500 eV, and k-point mesh of 4 × 4 × 6, centered on the Γ point, was found to be sufficient for rutile TiO ₂ -NP [ ²⁷ ].

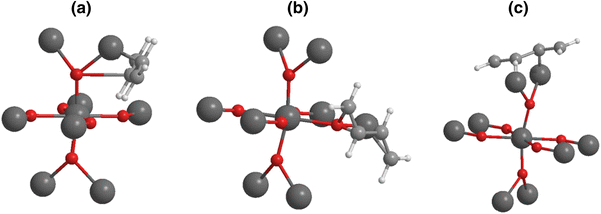

In this study is calculated and studied the approaching pollutants to Ti–O bond (the first and second probability are two different locations of Ti–O on r TiO ₂ -NP and the third probability is Ti–Ti bond) (Fig.  ² ). So geometrical structures of them are optimized by B3LYP/6-31G. Their thermodynamic properties are assessed by the ZINDO/S in semi-empirical method.

Fig. 2

Results and discussion

The Z-matrix files write for titanium dioxide nanoparticles structure (angles and length of bonds between oxygen and titanium) by experimental data of X-ray diffraction (Fig.  ¹ ) [ ²⁸ ], then Z-matrix files are optimized by the B3LYP method with 6-31G-based set on the GAMESS program package under Linux [ ²⁹ ]. Oxidation of butadiene into carbon dioxide and oxygen is:

Fig. 3

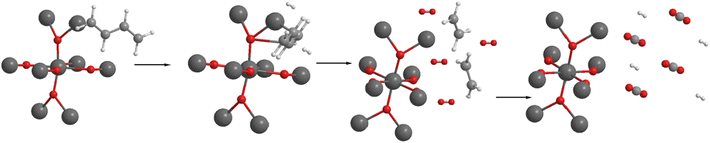

In this study, the interaction of butadiene with r TiO ₂ nanoparticles have been simulated in nine steps (Fig.  ³ ); from first and second steps butadiene is closed in r TiO ₂ -NPs, then in the third step, transition state of conversion of butadiene to ethylene occurs, in the fourth step product generated from the surface is removed. In fifth and sixth steps, the ethylene molecules are closed on the surface and in the seventh and eight step transition state conversion of them to CO ₂ and H ₂ , respectively. Then conversion was completed in ninth step and CO ₂ molecules are produced, then it is excreted from r TiO ₂ -NPs. The electronic structure and the thermodynamic properties are calculated for all steps by ZINDO/S-DFT.

The thermodynamic properties of these interactions on Ti–O and Ti–Ti cross bridges are shown in Tables  ¹ , ² , and ³ . All thermodynamic properties are shown in the table except that the dipole moment and RMS gradient are obtained by the following equation:

From Fig.  ⁴ and Tables  ¹ , ² , and ³ , the lowest energy is in the final product (CO ₂ ), which shows molecules of carbon dioxide are more stable than butadiene molecules. In third and sixth steps, a sudden change in energy and other thermodynamic parameters calculated is observed. For the intermediate to product, this sudden change in energy can be seen in seventh and eighth steps.

Fig. 4

The third step is transitioning state of butadiene to ethylene molecules. The sixth step is transitioning state of ethylene to CO ₂ . Dipole moments for all steps are calculated and are shown in Tables  ¹ , ² , and ³ , most changes of which are in the transition state of intermediates (third and sixth steps).

As the results show, from comparisons of data in Tables  ¹ , ² and ³ , the probability of pollutant interaction on cross bridge of Ti–O (2) is more than other locations. The distance of Ti–O (1), Ti–O (2) and Ti–Ti bonds are equal to 2.02, 1.62 and 2.95 Å, respectively (Fig.  ⁵ ). The electronegativity difference (Δχ) of Ti–O and Ti–Ti are 2.90 and 0. The bond number of Ti–O is more in the structure of r TiO ₂ -NP and space inhibited of Ti–O is also less than Ti–Ti. Bond length of Ti–O (2) is closer to the bond lengths of C=C and C–C in butadiene (Fig.  ⁵ ).

Fig. 5

To access to the electrical properties these interactions are used the electrical energy and it is obtained from the following equation [ ³⁰ ]:

The electrical resistance of all steps and conversions are computed based on electrical data, Eqs. ( ² ) and ( ³ ), as can be seen in Fig.  ⁶ . The electrical resistance of Ti–O bonds is different from Ti–Ti for the second to seventh steps, but for all bonds in the transition state of intermediate, the electrical resistance increases, the electrical resistance of CO ₂ is decreased; in these conditions increases the electrical conductivity and the electron exchange of butadiene and r TiO ₂ -NP is easier to occur than in transition state steps.

Fig. 6

Equation constant and other thermodynamic parameters such as Gibbs free energy, enthalpy and entropy of the whole reactions were computed through the following equation:

Conclusion

Anatase and rutile have the same chemical formula (TiO ₂ ) and have same geometrical symmetry (tetragonal) but show different physicochemical properties. Titanium dioxin molecules on the metal surface are activated by ultraviolet radiation and during some chemical processes make bacteria, algae and fungi disappear [ ³¹ ]. When ultraviolet ray is radiating to titanium dioxide, the electrochemical reactions are happening and is created the production of free radicals. Free radicals are combined with pollutants and destroy them.

After attraction of the sun’s ultraviolet by r TiO ₂ -NP, the electrons of capacity balances are displaced to guide band balance, and an empty hole appears in capacity balance, so the following can be considered:

Oxidative reaction:

The results show that the approach and conversion of this interaction are endothermic reaction and for this conversion sunlight (solar energy) or other energies are necessary. As the high temperature (900 °C) of automotive exhaust gases can provide energy for this interaction, in this study, all of the possibilities of interaction between butadiene interaction on r TiO ₂ -NP are investigated, the cross bridge of Ti–O (2) is suitable for converting this interaction. The use of nano-catalysts for the conversion of unburned hydrocarbons (butadiene) to low-risk products is affordable. Dipole moments of r TiO ₂ structure on the location of Ti–O are more than Ti–Ti, which is related to the electronegativity difference.
