Molecular dynamics simulation of the specific heat capacity of water-Cu nanofluids

Abstract

This paper presents molecular dynamics (MD) modeling for calculating the specific heat of nanofluids containing copper nanoparticles. The Cu nanoparticles with 2-nm diameter were considered to be dispersed in water as base liquid. The MD modeling procedure presented and implemented to calculate the specific heat of nanofluids with volume fractions of 2 to 10%. Obtained results show that the specific heat capacity of Cu-water nanofluids decreases gradually with increasing volume concentration of nanoparticles. The simulation results are compared with two existing applied models for prediction of the specific heat of the nanofluid. The obtained specific heat results from the MD simulation and the prediction from the thermal equilibrium model for calculating specific heat of nanofluids exhibit good agreement and the other simple mixing model fails to predict the specific heat capacity of Cu-water nanofluids particularly at high volume fractions.

Background

Nanofluids are a new class of nanotechnology-based heat transfer fluids produced by dispersing nanoparticles with sizes typically smaller than 100 nm into traditional heat transfer fluids such as water, ethylene glycol, and engine oil. Due to small sizes and very large specific surface areas of the nanoparticles, nanofluids have novel properties like high thermal conductivity, superior critical heat flux (CHF), minimal clogging in flow, and improved heat transfer coefficient [ 1 – 4 ]. These characteristics of nanofluids make them potentially useful in a plethora of engineering applications ranging from use in the automotive industry to the medical field to use in power plant cooling systems as well as computers [ 5 ].

In order to study the heat transfer performance of nanofluids and use them in practical applications, it is necessary first to study their thermal properties. Until now, there are numerous experimental and theoretical reports for the thermal conductivity and the viscosity of a variety of nanofluids [ 6 – 12 ]. The density of the nanofluids has been reported to be consistent with the mixing theory [ 13 , 14 ]. However, the specific heat capacity, c p , one of the main parameters involved in calculating heat transfer rate of nanofluids, has received very little attention. This property has an important role in describing the nanofluid flow thermal status, measuring the thermal diffusivity and the spatial temperature inside the flow.

Two models have been extensively applied in the experimental and numerical nanofluid investigations; the first one is similar to the mixing theory for ideal gas mixtures. In this model, the specific heat capacity of a nanofluid is given as

cp,nf=φcp,n+1−φcp,bf,

where φ is the volume fraction of nanoparticles. The subscripts nf , bf , and n refer to the nanofluid, base fluid, and nanoparticles, respectively. Many researchers have used this model to calculate the specific heat capacity of nanofluids in their studies [ 13 , 15 – 21 ].

The second model assumes that the base fluid and the nanoparticles are in thermal equilibrium. Therefore, the nanofluid specific heat capacity is expressed as

cp,nf=φρcpn+1−φρcpbfφρn+1−φρbf,

where ρ is the density.

This model has also been chosen as a base formula in many nanofluid studies [ 22 – 26 ]. It should be noted that the deviation between the two models is too large to be ignored, especially for high volume fractions of nanoparticles.

Zhou and Ni [ 27 ] conducted an experimental study of the specific heat capacity of water-based Al 2 O 3 nanofluid with a differential scanning calorimeter (DSC). Their results indicated that the specific heat capacity of nanofluids decreases gradually as the nanoparticle volume fraction increases. Moreover, their results are in good agreement with the thermal equilibrium model, Equation ( 2 ), and the other simple mixing model, Equation ( 1 ), failed to predict the specific heat capacity of nanofluids. Vajjha and Das [ 28 ] measured the specific heat of three nanofluids containing aluminum oxide, zinc oxide, and silicon dioxide nanoparticles. The base fluids were ethylene glycol and water (60:40 EG/W) and deionized water. Measurements were conducted over a temperature range of 315 to 363 K. Their results were not in close agreement with the existing equations for the specific heat of nanofluids. They developed a new general correlation for the specific heat as functions of particle volumetric concentration, temperature, and the specific heat of both the particle and the base fluid from their set of experimental data.

In another study, Zhou et al. [ 29 ] reviewed briefly the definition of heat capacity and measured the specific heat capacity of nanofluids made by ethylene glycol with the inclusion of CuO nanoparticles at room temperature using the quasisteady-state principle. The comparison of their measured experimental data and the predictions of models illustrated that they are in good agreement with the thermal equilibrium model.

The purpose of our study is to investigate the specific heat capacity of nanofluids using the molecular dynamics (MD) simulation method and to compare the results with the mentioned models.

The MD is a powerful computational technique that simulates the real behavior of materials by solving the equation of motion for a system of particles [ 30 – 32 ]. It can predict the physical properties of materials by assuming an interacting potential between particles. Using this method, the trajectory and physical movements of atoms, molecules, and nanoparticles in the system can be determined. The atoms are allowed to interact with each other and various quantities such as pressure, temperature, energy, and so on are calculated. Moreover, it can predict the physical properties of materials by assuming a suitable potential between particles. The interactions between atoms are described by different potentials and force fields. Since there is no further essential assumption in MD, it can be used as an accurate tool to study the results obtained from other classical models with a wide range of applicability in nanotechnology, biochemistry, and biophysics fields. However, there are some limitations in MD simulations such as number of particles and simulation time due to the available computational power. During the past few years, MD has been widely employed for prediction of thermal properties of nanofluids which provided comprehensive knowledge of heat transfer mechanism at nanoscale [ 33 – 40 ]. In this way, most of the studies have been focused on thermal conductivity enhancement and one could not find adequate MD literature on specific heat capacities of nanofluids.

In this paper, we have modeled the Cu-water nanofluids with different volume fractions of copper nanoparticles using MD simulation and compared the specific heat capacity of nanofluids with theoretical models. The simulation details, results on specific heat capacities, and their variations with different volume fractions are explained in the following sections.

Methods

MD Simulation details

Copper nanoparticles with 2-nm diameter have been considered in water as base fluid. The equilibrium structure of a nanofluid is shown in Figure  1 . The water molecules are randomly distributed around the nanoparticles. The inter-atomic interaction between nanoparticles is modeled by pair-wise Lennard-Jones (LJ) potential as

ULJr=4ϵσr12−σr6

where ϵ and σ are the LJ energy and length parameters, respectively, and r is the inter-atomic distance. The LJ potential has lower computational costs compared with the other existing potentials for modeling copper. The LJ parameters, i.e., ϵ and σ , for copper are shown in Table  1 . Here, water molecules are considered by the rigid TIP3P model as implemented in CHARMM which specifies a three-site rigid water molecule with charges and Lennard-Jones parameter assigned to each of the three atoms [ 41 ]. This model is very popular for MD simulations because of simplicity and computational efficiency. To compute for the long-range Coulombic interactions, we used the particle-particle-particle-mesh (pppm) method [ 42 ]. An additional switching function S ( r ) that ramps the energy and force smoothly to zero is used in both LJ and Columbic potentials as

Sr=rc,out2−r22rc,out2+2r2−3rc,in2rc,out2−rc,in23,

where r c,in and r c,out are inner and outer cut off radii equal to 8 and 10 Å, respectively.

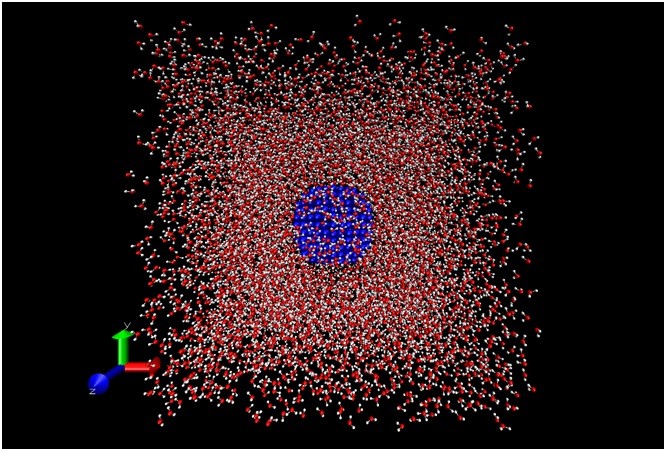

Figure 1

Nanofluid MD model: Cu nanoparticle (blue) and surrounding water.

Table 1

LJ parameters for non-bonding interactions [ 35 , 43 ]

Interaction type

ϵ(Kcal/mole)

σ(A)

Cu-Cu

9.4390

2.3377

H-H

0.0460

0.4000

O-O

0.1521

3.1507

The water-Cu and water-water interactions are described by common Lorentz-Berthelot combination rule as

σij=12σii+σjj

ϵij=ϵiiϵjj.

where i and j are denoted to non-bonded atoms in the system. The LJ parameters for nonbonding interactions are shown in Table  1 .

The Molecular dynamics simulations are performed initially in NVE ensembles as well as the Langevin thermostat over 100 ps to relax the system. The system is then performed in NPT integration for 400 ps, using the Nose/Hoover temperature thermostat [ 44 ] and the Nose/Hoover pressure barostat [ 45 ], implemented as described in [ 46 ]. After reaching the system to T = 298.5 K and atmospheric pressure, the thermodynamics quantities are recorded every 1 fs time steps. All MD simulations were performed using the Large-scale Atomic/Molecular Massively Parallel Simulator Package (LAMMPS) [ 47 ].

The constant-pressure specific heat is considered as c p = (∂E/∂T) p , which is usually defined in terms of energy fluctuations as

cp=δE2NPTkBT2,

where 〈 δE 2 〉 = 〈 E 2 〉 − 〈 E 〉 2 [ 48 , 49 ].

The energy fluctuation for a particular case ( φ = 2%) is shown in Figure  2 . Since, in the NPT ensemble, the temperature is artificially controlled by the thermostat, the total energy fluctuates around its mean value.

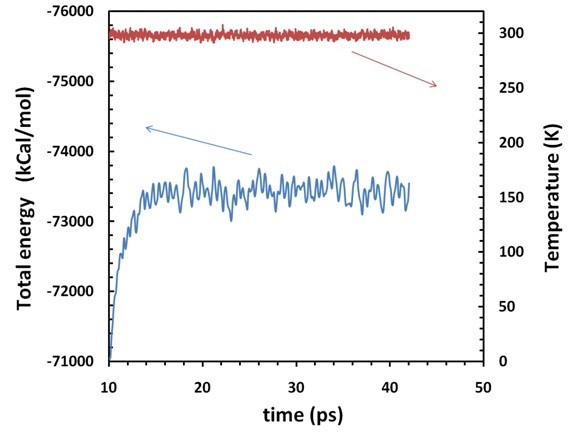

Figure 2

The total energy and temperature fluctuations of the system, for T = 298.5 K and volume fractions of 2%.

Results and discussion

Validation for pure water and copper

As the existing literature does not give any information about experimental results for the specific heat of Cu-water nanofluids, to validate our MD simulation procedure, the specific heat of pure water and pure copper at standard condition (T = 298.5 K and P = 1 atm) were calculated separately. To compute for the specific heat, we consider 1,000 molecules of water and 500 copper atoms. These values are the minimum number of particles used in all our simulations. The specific heat capacities of water and copper are computed for different total number of time steps for averaging in Equation ( 6 ). Figure  3 shows that the results are converging and 10 5 number of time steps for averaging is sufficient to be in good agreement with experimental values of specific heat capacities of water and copper.

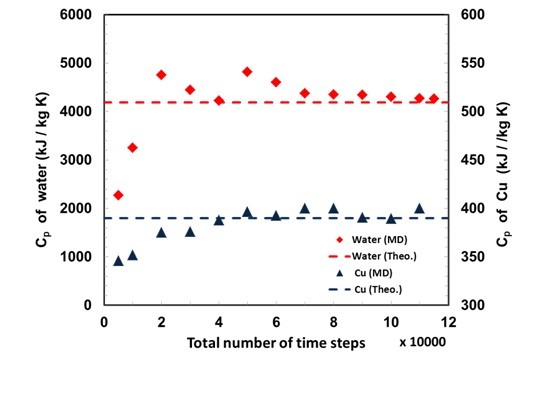

Figure 3

The specific heat capacities of pure water and copper are computed for different total number of time steps for averaging. MD results and experimental values are converging for large sufficient number of time steps.

Specific heat capacity for water-Cu nanofluid

After validating our method, the MD simulation results of the specific heat of nanofluid are presented here. Moreover, the obtained results by MD are compared with the mentioned theoretical models. The nanofluids with 2%, 4%, 6%, 8%, and 10% volume fractions are considered in the MD simulations. In all cases, the diameters of Cu nanoparticles are set to 2 nm. It should be noted that the Cu nanoparticles have not tethered to its initial position and can freely have its Brownian motions in our simulation.

The specific heat results are plotted in Figure  4 . As shown, the c p decreases when the volume fraction is increased. As shown in Figure  3 , the specific heat of Cu nanoparticles is much lower than the water base fluid. Therefore, by the increase in nanoparticle fraction, the portion of heat absorption with these lower specific heat nanoparticles is increased and lead to the decreasing in nanofluid specific heat. This reduction is consistent with the theoretical models. Moreover, the same reduction in specific heat by increasing in nanoparticle fraction has been observed in experimental studies [ 27 ].

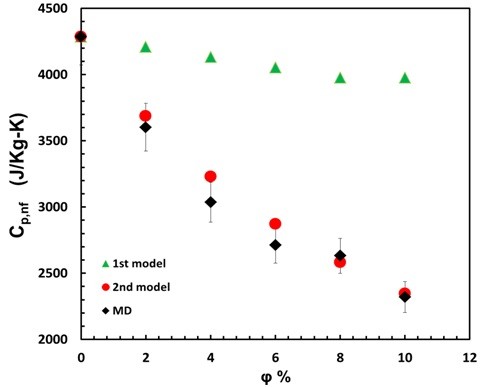

Figure 4

Specific heat capacity of nanofluid. Computed with MD (black points), mixing model Equation  1 (green points), and thermal equilibrium model Equation  2 (red points) for different volume fractions.

Figure  4 illustrates that there are good agreements between MD results and thermal equilibrium model predictions, Equation ( 2 ) (black points), and the other mixing model, Equation ( 1 ) (green points), failed to predict the specific heat of nanofluids particularly for large values of nanoparticle volume fractions. However, at very small values of volume fractions, both models and MD simulation data are converging.

Moreover, the effects of the number and size of the nanoparticles have been investigated by considering two Cu nanoparticles with diameter of 1 nm. It is found that the result is very close to the case of simulating one Cu nanoparticle with a 2-nm diameter in the water with the same volume fraction. Therefore, it can be concluded that the particle aggregation has no effect on the results.

Conclusion

In this paper, the specific heat capacities of the Cu-water nanofluids with different volume fractions were determined using MD simulation. The MD results were validated with experimental data for the specific heat of pure water and pure copper. The specific heat of nanofluid was found to decrease with the increase in the volume fraction of copper nanoparticles. It was also observed that the MD results are in good agreement with the thermal equilibrium model for predicting the specific heat of nanofluids, and the other model based on the mixing theory for ideal gas mixtures failed to predict the specific heat of nanofluids.

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

AR led and involved in the MD simulation, manuscript preparation and interpretation of the results. FYA generated the proper lattice and MD simulation code. MMH as the corresponding author acted as initiating the idea, manuscript preparation and data elucidation. KG participated in numerical run procedure.
