Adsorption characterization and CO2 breakthrough of MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites

Abstract

Carbon capture using adsorption processes can significantly mitigate global warming. Mg-MOF-74 is a distinct reticular material amongst other adsorbents owing to its distinguished carbon dioxide adsorption capacity and selectivity under low-pressure applications, while MIL-100(Fe) has lower CO 2 adsorption capacity, but extraordinary thermal and hydrostability in comparison to many classes of MOFs. In this paper, we present CO 2 adsorption characteristics of new compounds formed by the incorporation of multi-walled carbon nanotubes (MWCNTs) into Mg-MOF-74 and MIL-100(Fe). This was done to improve the thermal diffusion properties of the base MOFs to enhance their adsorption capacities. The new composites have been characterized for degree of crystallinity, and the CO 2 and N 2 equilibrium uptake. The real adsorption separation has been investigated by dynamic breakthrough tests at 297 K and 101.325. The equilibrium isotherm results showed that Mg-MOF-74 and 0.25 wt% MWCNT/MIL-100(Fe) (MMC2) have the highest CO 2 uptake in comparison to the other investigated composites. However, the interesting results obtained from breakthrough tests demonstrate that good improvements in the CO 2 adsorption uptake and breakthrough breakpoint over pristine Mg-MOF-74 have been accomplished by adding 1.5 wt% MWCNT to Mg-MOF-74. The improvements of CO 2 adsorption capacity and breakpoint were about 7.35 and 8.03%, respectively. Similarly, the CO 2 adsorption uptake and breakthrough breakpoint over pristine MIL-100(Fe) are obtained by 0.1 wt% MWCNT/MIL-100(Fe) (MMC1) with improvements of 12.02 and 9.21%, respectively.

Introduction

The fossil fuel burning processes produce greenhouse gases, including CO 2 , N 2 , and CH 4 . Global warming caused by these gases leads apparently to shore floods, hot atmosphere, soil droughts, and damage of eco system. In this scenario, carbon dioxide holds the most significant portion of the flue gases released to the atmosphere [ 1 ]. Thus, extensive efforts have been made by scientists, institutions, countries, and environmental organizations to reduce the CO 2 emissions. The principal source of CO 2 is a combustion processes that used fossil fuel. However, the utilization of fossil fuel is still very for satisfying energy demands. Hence, the feasible solution to continue using fossil fuel with mitigation of climate change is Carbon Capture and Storage (CSS).

A massive number of researchers have already studied CO 2 capture using both experimental and simulation approaches as well as synthesizing novel adsorbents [ 2 ]. Using adsorption for CO 2 separation is advantageous by the ease of regenerating the adsorbent by being exposed to heat and/or vacuum [ 3 ]. The most common known adsorbents are activated carbons and zeolites being exploited for CO 2 separation and storage. Zeolites could adsorb a higher quantity of CO 2 than does by activated carbon at low operating pressures (< 20 kPa) [ 4 , 5 ], whereas carbon-based adsorbents are better for CO 2 storage applications [ 5 , 6 ]. Conversely, the obvious merits of carbon adsorbents over zeolites are cost penalties, hydrostability, lower regeneration energy, and easiness of production on a commercial scale [ 7 ]. Despite, zeolite-based adsorbents have the relatively higher CO 2 adsorption capacity, especially at lower adsorption pressures (10–30 kPa (abs.) at T  = 30 °C), the CO 2 uptake is greatly reduced in case of CO 2 /H 2 O mixture and requires significantly higher heat of regeneration [ 8 , 9 ].

Since 20 years ago, a novel class of reticulate adsorbents has been discovered and called metal organic frameworks (MOFs) [ 10 , 11 ]. In this context, the highest adsorption CO 2 adsorption capacity (1470 mg g −1 ) was reported for MOF-177 at 35 bar [ 12 ]. Over time, a large number of MOFs have been developed by scientists for maximize the CO 2 uptake and selectivity.

A certain class of MOFs incorporating functionalized and open metal sites has shown high separation efficiency at ambient conditions like HKUST-1, Mg-MOF-74, and NH 2 MIL-53 (Al) [ 13 ]. With regard to maximum CO 2 adsorption capacity uptake, a few MOFs have shown a reasonably high CO 2 uptake, such as CPM-5, MIL-53 (Al), UMCM-150, and Ni-STA-12, while others have been evaluated for comparatively lower uptakes like MOF-5 and MOF-177 [ 13 ]. A nickel-based MOF, Ni/DOBDC, was also investigated for CO 2 capture and was measured to exhibit a fairly high adsorption capacity [ 14 ]. A nickel isonicotinate-based ultramicroporous MOF, 1 [Ni-(4PyC)2·DMF], showed lower parasitic energy than Mg-MOF-74 and good stability with humidity [ 15 ].

MOF-74 is the most currently available MOFs with high CO 2 adsorption uptake as well as an excellent CO 2 over N 2 selectivity [ 16 , 17 ]. More specifically, Mg-MOF-74 was quantitatively identified as the highest adsorbent adsorbs CO 2 at low-pressure conditions (350 mg/g at 298 K) [ 17 ]. It is also reported that Mg-MOF-74 showed higher H 2 O hydrophilicity (593 ml/g at 298 K) than zeolite [ 18 ]. Despite the high CO 2 uptake of Mg-MOF-74, the existence of H 2 O reduced the CO 2 capture capacity, unlike HKUST-1, MIL-101(Cr), and MIL-100 (Fe) types [ 19 ]. The study [ 19 ], moreover, showed the reduction of CO 2 adsorption at different conditions. For example, at 1 bar and 298 K, the CO 2 adsorption capacity of the dry Mg-MOF-74 was about 8.4 mmol/g of CO 2, while with hydration 6.5 and 13%, the CO 2 adsorption capacity values were 6.7 mmol/g and 5.4 mmol/g, respectively [ 19 ]. MIL-100(Fe) is remarked as the hydro- and thermal-stable adsorbent. It showed that some increase in CO 2  uptake recorded with increasing RH, (up to 105 mg g −1  for CO 2  at 40% RH), with a large decrease in adsorption heat [ 20 ].

Less than 2 decades, carbon nanotubes (CNTs) have confirmed a capability towards CO 2  separation [ 21 , 22 , 23 , 24 – 25 ]. Specifically, the functionalized CNTs by amine-groups showed a significant improvement in the CO 2 uptake [ 26 , 27 , 28 – 29 ]. The CO 2  uptake was reported around 2.59 mmol/g at 293 K using APTES functionalized CNTs. Incorporating CNTs with adsorbents could considerably improve the thermal diffusion of the adsorbents, thereby enhancing the CO 2 adsorption uptake [ 30 , 31 – 32 ]. For example, the compound of CNT@13X/CaCl 2 exhibited higher thermal conductivity and then more CO 2 uptake than did by 13X/CaCl 2 and pristine 13X [ 30 , 31 ]. Furthermore, the thermal stability along with the adsorption uptake was improved by adding CNT to MIL-101-68 (Al) [ 32 ]. Incorporating CNT and lithium ions with MOF Cu 3 (btc) 2 resulted in improving the CO 2 capacity by about 305% compared with those of the base adsorbent (Cu 3 (btc) 2 ) [ 33 ]. In addition, the adsorption capacity of CO 2 at high pressure and room temperature (10 bars and 298 K) was improved by adding MWCNT to MIL101 [ 34 ].

A considerable number of experimental and numerical research attempts based on CO 2 capture and separation have been conducted so far in terms of breakthrough and pressure and temperature swing adsorption [ 35 , 36 , 37 , 38 , 39 , 40 , 41 , 42 , 43 , 44 , 45 , 46 , 47 , 48 – 49 ]. Nevertheless, the majority amount of research chemically concentrated on development of novel adsorbent materials targeted for acquiring high CO 2 adsorption and selectivity. At this point, the poor thermal conductivity shown by a vast majority of these adsorbents has been experienced as a major barrier in improving the CO 2 uptake of these materials in real applications. In addition, a very limited number of research attempts have conducted the enhancement of CO 2 capture and storage via improving the thermal properties of the base adsorbent. For this reason, this paper aims at investigating the effects of incorporating multi-walled carbon nanotubes (MWCNTs) with Mg-MOF-74 and MIL-100(Fe), with the aim of enhancing the thermal properties of the adsorbents, and investigating the influence of the MWCNT addition on the CO 2 adsorption capacity and breakpoint of the resulting MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites. The synthesized and activated Mg-MOF-74 and MIL-100(Fe) have been physically incorporated with different percentages of MWCNTs. They are characterized for the degree of crystallinity, CO 2 adsorption isotherms, and CO 2 adsorption breakthrough. Moreover, the dynamic separations of breakthrough tests are carried out to address the actual CO 2 separation from CO 2 /N 2 (20% v/v. CO 2 and 80% v/v. N 2 for MWCNT/Mg-MOF-74, and 15% v/v. CO 2 and 85% v/v. N 2 for MWCNT/MIL100(Fe)) mixture and then computing the level of enhancements on CO 2 uptake and separation.

Experimental work methodology

MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) samples preparation

We have followed a successful procedure for synthesizing Mg-MOF-74 as described in [ 50 ]. Briefly, 0.337 g 2,5-dihydroxyterephthalic acid and 1.4 g Mg(NO3)2·6H2O were dissolved in a solution of 135 ml dimethylformamide, 9 ml ethanol, and 9 ml water with sonication for 10 min. The resulting stock solution was decanted into twelve 50 ml bottles. The bottles were tightly capped and heated at 398 K for 26 h. The mother liquor was, then, decanted. Following this, the products were washed with methanol, and then, left immersed in methanol. The products were combined to one bottle and exchanged into fresh methanol daily for 4 days. The activation process was carried out by evacuating the product to dryness and then heated under vacuum at 523 K for 6 h.

The synthesis of MIL-100(Fe) was performed in accordance with a previously reported procedure [ 51 ]. We first dissolved Fe(NO 3 ) 3 ·9H 2 O (4.04 g, 0.01 mol) in de-ionized water (50.2 ml, 2.8 mol) and the mixture was completely put in a 125 ml Teflon-liner containing BTC (1.4097 g, 0.00671 mol). After that, the Teflon-liner was tightly sealed inside a stainless steel autoclave and was kept at 383 K for 14 h. After heating, the autoclave was slowly cooled to ambient temperature, after which the “as-synthesized” dark orange solid was recovered using a centrifuge that was operated at 8000 rpm for about 45 min. The as-synthesized MIL-100(Fe) was washed with copious amounts of water and ethanol and finally with an aqueous NH 4 F solution in purpose removing any unreacted species. Specifically, the dried solid was, first, immersed in deionized water (60 ml per 1 g of solid) and the resulting suspension was stirred at 70 °C for 5 h. Again, the suspension was centrifuged and the wash process was repeated using ethanol (60 ml) at 65 °C for 3 h. This two-step purification was repeated until the decanted solvent following centrifugation became completely colorless, after which the solid was immersed in a 700 ml aqueous NH 4 F solution and stirred at 70 °C for 5 h. The suspension was again centrifuged and the solid was washed 5 times DI water at 60 °C, and finally dried in air at 75 °C for 2 days followed by 95 °C for 2 days.

The MWCNT/Mg-MOF-74 sample designations were based according to the weight percentage of powder form of MWCNTs which was physically mixed with as-synthesis powder form of Mg-MOF-74 as follows. Mg-MOF-74, 0.1 wt% MWCNT/Mg-MOF-74, 0.25 wt% MWCNT/Mg-MOF-74, 0.5 wt% MWCNT/Mg-MOF-74, 0.75 wt% MWCNT/Mg-MOF-74, 1 wt% MWCNT/Mg-MOF-74, and 1.5 wt% MWCNT/Mg-MOF-74 and shortly named as Mg-MOF-74, MFC1, MFC2, MFC3, MFC4, MFC5, and MFC6, respectively. The incorporation of powder form of MWCNT with as-synthesis powder form of MIL-100(Fe) has produced MIL-100(Fe), 0.1 wt% MWCNT/MIL-100(Fe), 0.25 wt% MWCNT/MIL-100(Fe), and 0.5 wt% MWCNT/MIL-100(Fe) which were named as MIL-100(Fe), MMC1, MMC2, and MMC3, respectively. The particle size distribution for selective composites has been conducted using Particles-Size Analyzer, Model S3500, Microtrac, USA.

Powder X-ray diffraction (PXRD) analysis

To determine the crystallinity of composites, PXRD patterns of MWCNT/Mg-MOF-74 were collected using a Bruker D8-Advance (Cu K α λ  = 1.54056 Å). The operating power of the PXRD system was 30 kV/30 mA and the step-counting method (step = 0.02 o , time = 3 s) was used to collect data at range 2 θ  = 3–45 o and 298 K. For MIL-100(Fe); the diffraction data were collected between 3 and 45° (2 θ ) with a total scan time of 3 h.

Scanning electron microscopy (SEM)

Scanning electron microscopy (SEM) was carried out using a TESCAN LYRA3 FEG microscope to test structure of Mg-MOF-74, 1.5 wt% MWCNT/Mg-MOF-74, MIL-100(Fe) and 0.5 wt% MWCNT/MIL-100(Fe). SEM samples were prepared by placing a powder form of samples on Al tapes and sputter coated with gold. The images were obtained at voltage of 20 kV.

Gas physisorption measurements

The first step in the physisorption measurements of CO 2 and N 2 is the sample degassing to remove any guest molecules within the pores of each material. Typically, 50–200 mg of each sample was transferred to pre-weighed empty sample cell with a 9 mm diameter. Degassing was conducted at 150 °C under vacuum for about 17 h for MWCNT/MIL-100(Fe) and 220 °C under vacuum during about 5 h for MWCNT/Mg-MOF-74 using an Autosorb degasser (Quantachrome Instruments, Inc.). Nitrogen adsorption isotherms at 77 K were first recorded to estimate the Brunauer–Emmett–Teller (BET)-specific surface area ( S BET ), average pore radius, and total pore volume. The interesting equilibrium adsorption isotherms for CO 2 at 273, 298, and 313 K, and for N 2 at ambient temperature (298 K) were recorded. The CO 2 heat of adsorption was evaluated using the adsorption isotherms measured at 273 and 313 K in accordance with the Clausius–Clapeyron equation.

Breakthrough experiments of binary gas mixture (CO2 + N2)

A dynamic CO 2 /N 2 breakthrough setup was constructed to separate CO 2 from a CO 2 /N 2 mixture (representing a flue gas), Fig.  1 . The home-made setup is composed of a bed column with specifications of Inner diameter = 4 mm, outer diameter = 6 mm, and length = 7 cm. The column was filled with the MWCNT/Mg-MOF-74 composite (about 0.26 g), or the MWCNT/MIL-100(Fe) composite (about 0.74 g). The system includes CO 2 and N 2 cylinders, two MFC (calibrated for CO 2 and N 2 flow rates), two check valves, and bypass tube (for calibrating the gases concentration detected by mass spectrometer from the inlet gas compositions). It, moreover, includes two bourdon absolute pressure (manufactured by Baumer, accuracy ± 1.6%), mass spectrometer (to measure the outlet gases composition leaving from the bed), vacuum pump and electric heater jacket (for regeneration purpose), and interconnecting stainless steel fittings and tubes to regulate the flow of carrier gas within the system.

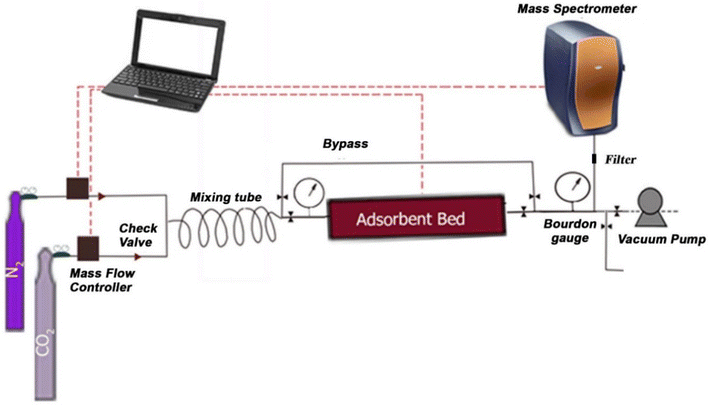

Fig. 1

Scheme of CO 2 /N 2 adsorption separation breakthrough setup

The first step in the operation of breakthrough setup has involved the degassing of the activated MWCNT/MIL-100(Fe) or MWCNT/Mg-MOF-74 composite sample at 423 K under vacuum for 1 day period to remove any guest gases inside the pores of MWCNT/MIL-100(Fe) or MWCNT/Mg-MOF-74 frameworks. The breakthrough experiments were conducted at 297 K and 101.3 kPa. The flowrate of the feed gas, a mixture of 20% CO 2 and 80% N 2 (v/v) for MWCNT/Mg-MOF-74 samples and 15% CO 2 and 85% N 2 (v/v) for MWCNT/MIL-100(Fe) samples, was kept constant at 20 and 10 sccm for MWCNT/Mg-MOF-74 and MIL-MWCNT/100(Fe) composites, respectively. The full breakthrough capacity of CO 2 and N 2 was measured by evaluating the ratio of compositions of the downstream gas and the feed gas. The CO 2 adsorption capacity of the adsorbents is evaluated from the CO 2 molar flowrate inters and leaves the bed using the expression [ 42 ]:

qco2=1m∫0tQFC0-CtQtdt-εVC0,
where qco2 (mmo/g) represents the CO 2 uptake, Q F and Q ( t ) (m 3 /s) are the input and output volumetric flow rates, C 0 and C ( t ) (mol/m 3 ) are the influent and effluent CO 2 concentrations, t (s) is the time, ε is the bed porosity, and V (m 3 ) is the bed volume.

The term ( εVC0) in Eq.  1 , which represents the CO 2 amounts still in the bed void (without being adsorbed), has very small values comparing to the other terms, so that, it can be ignored. However, we have considered it in our calculations.

Results and discussion

Powder X-ray diffraction (PXRD) analysis

Figure  2 shows the PXRD patterns of MWCNT/Mg-MOF-74 compounds as well as MIL-100(Fe). It can be seen (Fig.  2 a) that the PXRD pattern of MWCNT/Mg-MOF-74 and Mg-MOF-74 samples is in good agreement with the simulated pattern. The incorporation of MWCNTs has not decreased the crystallinity of the framework, as all the intensity peaks locations have represented the Mg-MOF-74 structure. Hence, it can be concluded that the incorporation of less than 1.5 wt% MWCNTs using physical mixing preserves the characteristic lattice structure of the Mg-MOF-74 framework. The same conclusion was drawn for MWCNT/MIL-100(Fe) as reported in the recent work [ 51 ]. Figure  2 b is to exhibit that the synthesized MIL-100(Fe) was in good agreement with the simulated pattern.

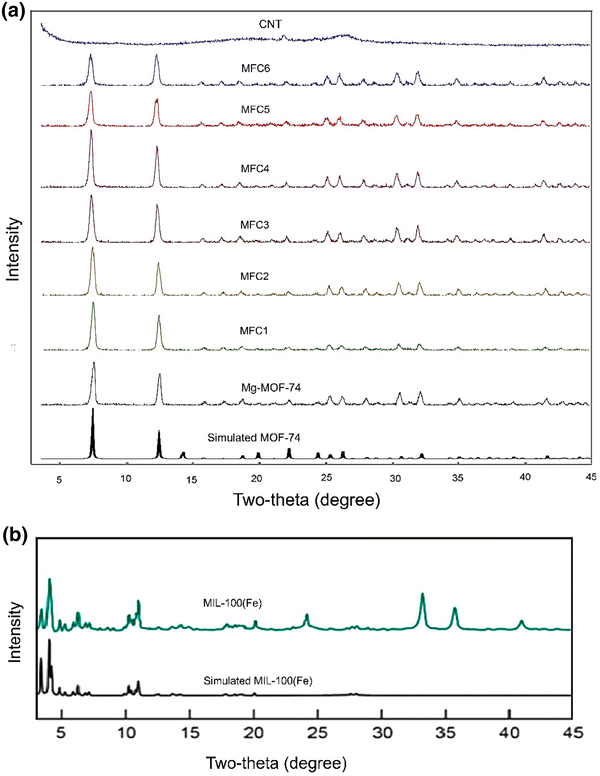

Fig. 2

PXRD patterns for a MWCNT/Mg-MOF-74 and b MIL-100(Fe)

Electron microscopy analysis

The morphologies of Mg-MOF-74, MIL-100(Fe), 1.5% wt MWCNT/Mg-MOF-74, and 0.5 wt% MWCNT/MIL-100(Fe) composites observed by SEM are shown in Fig.  3 . The physical incorporation of MWCNTs does not change the shape of the Mg-MOF-74 and MIL-100(Fe) crystals. The crystal size of Mg-MOF-74 is much bigger than that of MIL-100(Fe).

Fig. 3

SEM micrographs of a Mg-MOF-74, b MIL-100(Fe), c 1.5 wt% MWCNT/Mg-MOF-74, and d 0.5 wt% MWCNT/MIL-100(Fe)

Adsorption equilibrium isotherms of carbon dioxide and nitrogen

The N 2 equilibrium isotherms for the MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites have been measured at 77 K. Table  1 lists the important porosity-related parameters estimated from the N 2 adsorption data MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites. The measured BET surface area was almost close to each other in MWCNT/Mg-MOF-74 compounds between 1470 and 1590 m 2 /g. In addition, the total pore volume measured at 95% relative pressure (P/P0) and the pore size measured were determined to be almost the same for all the samples by around 0.63–0.71 cc/g and 19 Å, respectively. The Mg-MOF-74 BET surface area and total pore volume values are in good agreement with those reported in the literature [ 17 , 50 , 52 ]. It can be deduced from the data shown in Table  1 that the addition of MWCNTs does not result in substantial differences concerning its influence on the porosity-related parameters evaluated for the MWCNT/Mg-MOF-74 compounds. Similarly, the incorporation of MWCNTs with MIL-100(Fe) did not change the porosity-related parameters of pristine MIL-100(Fe). There was almost slight increase in the surface area from 1083 m 2 g −1 for base MIL-100(Fe) to 1464 m 2 g −1 for MMC2. The total pore volume at 0.95 relative pressure was around 0.61 and 0.69 cc/g for MMC1 and MMC2, respectively, in comparison to 0.55 cc/g for the pristine MIL-100(Fe). Regarding the pore size, it is clearly that the pore diameter for all the MIL-100(Fe) and composite samples was around 20 Å. These porous-property values are close to those reported for MWCNT/MIL-100(Fe) composites [ 51 ]. However, the synthesized MIL-100(Fe) in the present work is not the best qualitative fashion of this adsorbent due to the method of synthesis and purification we have followed. BET and pore volume of MIL-100(Fe) could be varied between 1090 and 2050 m 2 g −1 (for BET) and from 0.65 to 1.15 cc/g (for average pore volume) [ 53 ].

Table 1

Pores characterization of the MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites for N 2 at 77 K

Characterizations

SBET (m2/g)

Pore volume (cc/g)

Average pore radius (Å)

Mg-MOF-74

1518

0.63

8.31

MFC1

1545

0.66

8.55

MFC2

1525

0.65

8.51

MFC3

1579

0.67

8.51

MFC4

1562

0.71

8.51

MFC5

1586

0.69

8.73

MFC6

1477

0.63

8.52

MIL-100(Fe)

1083

0.55

10.07

MMC1

1248

0.61

9.74

MMC2

1464

0.69

9.52

MMC3

1060

0.58

10.94

The CO 2 adsorption isotherms for MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites, measured at 273, 298, and 313 K, are exhibited in Figs.  4 and 5 . It is obvious that the adsorption uptake increased sharply in the region below 15 kPa and increased gradually with increasing adsorption pressure greater than 20 kPa. This behavior gives a good advantage for CO 2 capturing in low-pressure applications including the CO 2 separation from the flue gas (P CO2  = 10–20 kPa). However, as expected, an increase in the measured temperature showed an adverse effect on the recorded uptakes for each material. As obvious from Fig.  4 , the highest CO 2 uptake has been measured for pristine Mg-MOF-74 followed by MFC1 at all the measured temperatures (273, 298, and 313 K). For MWCNT/MIL-100(Fe) compounds (Fig.  5 ), the adsorption uptake increased more or less linearly with increasing adsorption pressure. It is obvious that MMC2 showed optimal adsorbed amounts, and MMC1 resulted in the second highest uptake even greater than the pristine MIL-100(Fe) and MMC3 composites, as shown in Fig.  5 a–c. It is worth mentioning here that the CO 2 uptake for MWCNT/Mg-MOF-74 composites was much higher than that adsorbed by MWCNT/MIL-100(Fe) compounds. Another point is that the best version of MIL-100(Fe) could adsorb about 1 and 1.52 mmol/g at 0.6 bar for outgassing pretreatments 150 and 250 °C, respectively [ 54 ]. Consequently, the reduction of CO 2 capacity of the present MIL-100(Fe) ( q  = 0.6 mmol/g at 0.6 bar and 298 K) is due to both the followed synthesis method (using Fe(NO 3 ) 3 ·9H 2 O) and the activation treatments (75–95 °C).

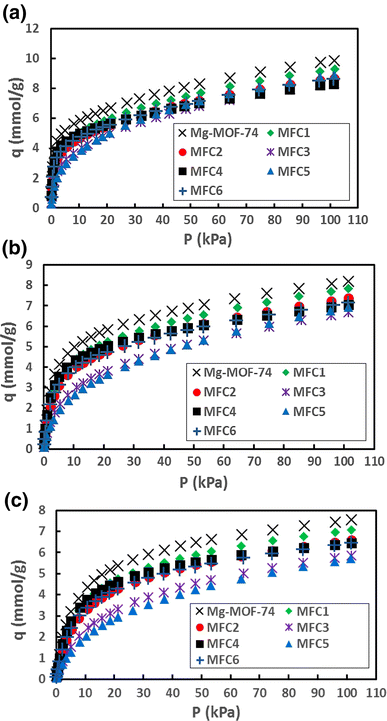

Fig. 4

CO 2 adsorption isotherms of MWCNT/Mg-MOF-74 composites at: a 273 K, b 298 K, and c 313 K

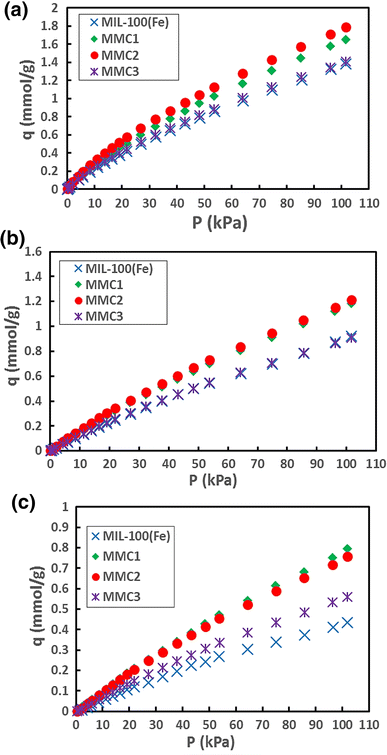

Fig. 5

CO 2 adsorption isotherms of MWCNT/MIL-100(Fe) composites at: a 273 K, b 298 K, and c 313 K

The N 2 adsorption isotherms for MWCNT/Mg-MOF-74 composites, measured at 298 K, are displayed in Fig.  6 a. It is evident that the pristine Mg-MOF-74 exhibited the largest uptake amount, followed by MFC4, MFC1, MFC6, MFC2, MFC5, and MFC3, respectively. Figure  6 b shows N 2 uptake by MWCNT/MIL-100(Fe) compounds. It is clear that MMC1 had higher adsorbed values in comparison to the other compounds. For both adsorbent composites [MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe)], the maximum uptake measured for N 2 was observed to be significantly smaller than that measured earlier for CO 2 . In other words, all the samples have been noticed to exhibit preferential selectivity of CO 2 over the N 2 .

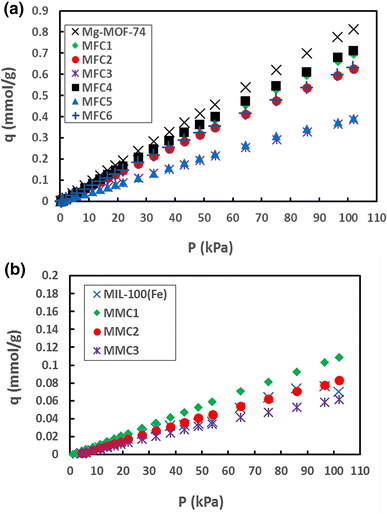

Fig. 6

N 2 adsorption isotherms at 298 K for a MWCNT/Mg-MOF-74 and b MWCNT/MIL-100(Fe) composites

To represent isotherms in mathematical models, Toth fitting (Eq.  2 ) is satisfied. For instance, the CO 2 and N 2 values obtained using Toth fitting of MFC6 and MMC1 show an excellent agreement with those of the experimental isotherms as plotted in Fig.  7 . The respective fitting parameters at 95% level of confidence are tabulated in Table  2 :

qi=qm,iKeq,iPi1+Keq,iPini1/ni.

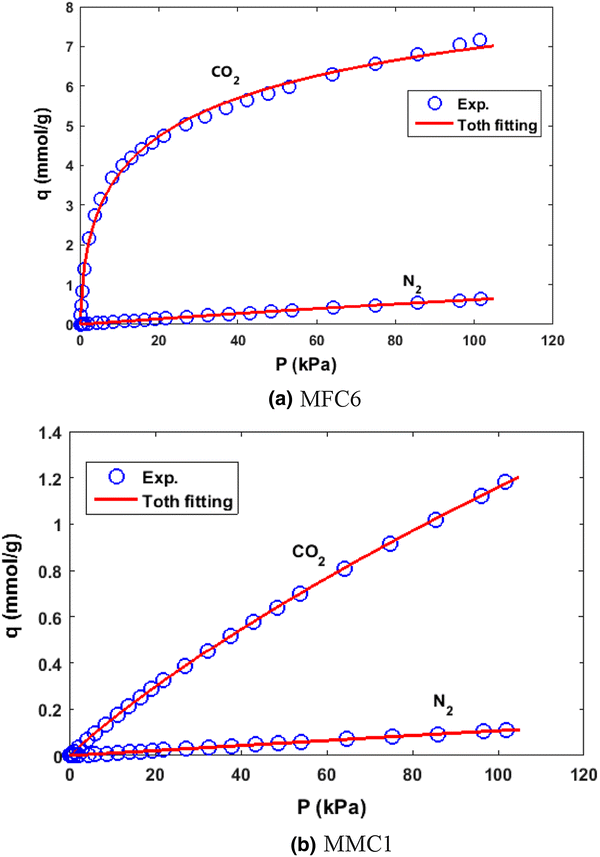

Fig. 7

Equilibrium isotherms and Toth fittings for MFC6 and MMC1 at 298 K. a MFC6 and b MMC1

Table 2

Toth fitting parameters from experimental CO 2 and N 2 isotherms for MFC6 and MMC1 at 95% level of confidence

Parameter

Estimate

Lower limit

Upper limit

MFC6

 CO2

  qm (mmol/g)

12.952

9.843

16.062

  KEquation (1/kPa)

0.666

0.266

1.067

  n

0.342

0.262

0.423

 N2

  qm (mmol/g)

2.430

0.979

3.881

  KEquation (1/kPa)

0.0029

0.0012

0.0045

  n

1.399

0.921

1.876

MMC1

 CO2

  qm (mmol/g)

21.628

6.878

36.379

  KEquation (1/kPa)

8.42 × 10−4

3.17 × 10−4

13.66 × 10−4

  n

0.529

0.425

0.634

 N2

  qm (mmol/g)

0.157

− 0.040

0.354

  KEquation (1/kPa)

69.1 × 10−4

− 17.24 × 10−4

155.56 × 10−4

  n

6.320

− 9.136

21.776

Here, q is the equilibrium adsorption amount (mmol/g) of species i . q m , K eq , and n are the Toth fitting constants.

Figure  8 a, b depicts the variation of heat of adsorption for CO 2 , Q st , against the instantaneous CO 2 uptake for MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites. For MWCNT/Mg-MOF-74, the Q st _ CO2 values were observed to exhibit a more or less curvilinear correlation with the instantaneous CO 2 uptake, as shown in Fig.  8 a. In general, Q st _ CO2 values locate between 25 and 40 kJ/mol; the high values were sequentially associated with Mg-MOF-74, MFC4, MFC2, and MFC5. In contrast, MFC5 and MCF3 showed lower values of CO 2 adsorption heat. Mg-MOF-74 heat of adsorption profile is close to that reported by Simmons et a. [ 55 ].The MWCNT/MIL-100(Fe) composites have been measured to have CO 2 adsorption heat values between 18 and 28 kJ/mol [for q  > 0.3 mmol/g, Fig.  8 b]; the highest values were measured for MIL-100(Fe) about 27.3 kJ/mol (for q  > 0.3 mmol/g) and the lowest obtained by MMC1 about 18 kJ/mol (for q  > 0.3 mmol/g). The CO 2 adsorption heat of MIL-100(Fe) show a close values with those of the same adsorbent reported by Mei et al. [ 56 ].

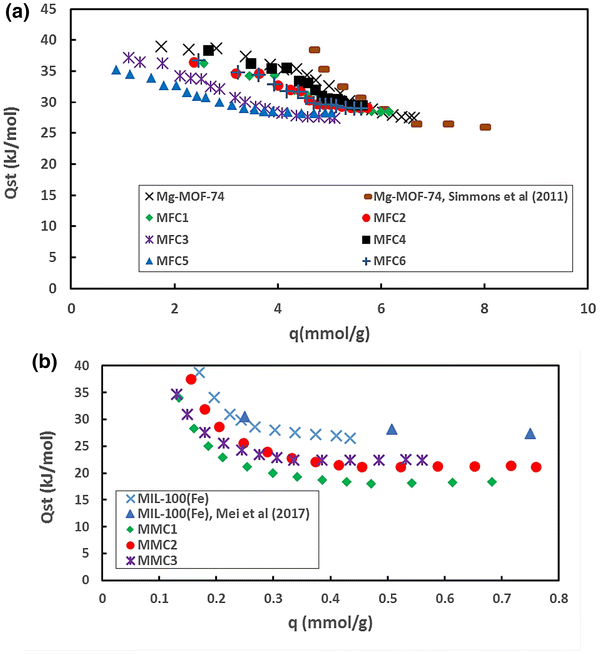

Fig. 8

CO 2 heat of adsorption ( Q st ) a MWCNT/Mg-MOF-74 and b MWCNT/MIL-100(Fe) composites

Experimental adsorption breakthrough test for MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites

Breakthrough experiments have been performed for the binary gas (CO 2 /N 2 ) to quantify the improvements in CO 2 adsorption uptake and breakpoint as a result of the incorporation MWCNTs inside Mg-MOF-74 and MIL-100(Fe). In a typical procedure, predetermined amounts of MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composite samples were first transferred to a tube (length L  = 7 cm, inner diameter ∅  = 4 mm). All breakthrough experiments have been performed at ambient temperature of 297 K.

Particle size used in breakthrough was measured for some selective composites including pure materials and the maximum MWCNTs contents composites, as shown in Fig.  9 . Mg-MOF-74 and MFC6 have almost close particle size distribution where the particle size values allocated between 1 and 88 µm. It is also shown that percentage of large sizes have been decreased by adding 1.5 wt% MWCNT. For MWCNT/MIL-100(Fe) particle size distribution, it is obvious from Fig.  9 b that the both tested samples (MIL-100(Fe) and MMC3) have similar distribution (between 1 and 1400 µm) with almost the same percentages. This is attributed to the small percentages of MWCNT added to the adsorbents.

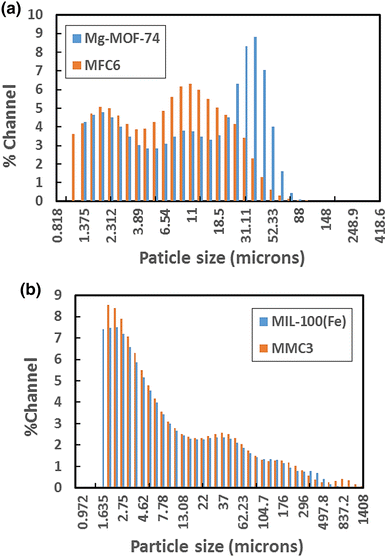

Fig. 9

Particle size distribution (microns) for a Mg-MOF-74 and MFC6, and b MIL-100(Fe) and MMC3

For systematic tests, the pressure drop has been diminished to a round zero as monitored by two bourdon meters at the inlet and outlet of the bed. The adsorbent bed was packed with almost the same packing density by about 0.292 ± 0.005 and 0.842 ± 0.002 g/cc for MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) compounds, respectively. The samples have been pre-treated by heating process for 20 h at about 423 K under vacuum. The experimentally measured CO 2 and N 2 adsorption breakthrough curves for MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites are displayed in Fig.  10 . As evident, the outlet concentration ratios calculated each of these two gases have been plotted against the measurement time. In general, it was observed in all the tested samples that the concentration ratio evaluated for CO 2 at the bed outlet remained constant at zero for some time (e.g., about 6–7 min for MWCNT/Mg-MOF-74 and 2–3 min for MWCNT/MIL-100(Fe) compounds), whereas the concentration ratio for N 2 increased up to about 1.3 (almost molar fraction = 1) owing to the absence of CO 2 which was pre-adsorbed into the Mg-MOF-74 or MIL-100(Fe) composite adsorbent bed. Following the first adsorption minutes of measurement time, the CO 2 concentration ratio was observed to increase up to 1, whereas the concentration ratio of N 2 was evaluated to gradually drop to a value close to 1. For MWCNT/Mg-MOF-74 composites, the optimal value of the breakpoint, a time at which the concentration ratio of the bed outlet has been evaluated to be less than 5%, was measured to be about 8.16 min (28.4 min/g) for MFC6 against 7.5 min (27.67 min/g) for Mg-MOF-74. This was followed by the value measured for MFC4 of about 8.1 min, and then by 7.96 min for MFC1 (Fig.  10 a). In the same manner, the highest breakthrough breakpoint obtained by MWCNT\MIL-100(Fe) was associated with MMC2 by about 3.21 min (4.33 min/g) (Fig.  10 b). The next breakthrough point was obtained by MMC1 at about 3.19 min (4.32 min/g), and, then, by pristine MIL-100(Fe) at about 2.9 min (3.69 min/g).

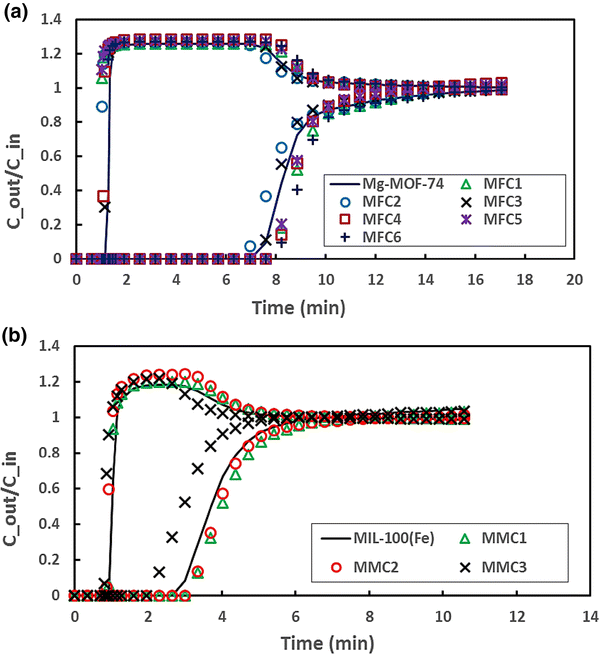

Fig. 10

Breakthrough curves for a MWCNT/Mg-MOF-74 composites for CO 2 /N 2 (0.2/0.8 v/v) and b MWCNT/MIL-100(Fe) composites for CO 2 /N 2 (0.15/0.85 v/v), measured at 297 K and 101.3 kPa

Adsorption breakthrough and separation processes can be also investigated numerically as described in our previous works [ 57 , 58 – 59 ]. In addition, adsorption breakthrough curves, can be analytically represented by fitting the experimental curves using some approaches reported in the literature; one of these approaches is expressed in the following equation [ 60 , 61 ],

C_outC_in=12erfcξ-τ-ξ8-τ8,
where
ξ=kKLv1-εε,
τ=kt-Lv.

Here, k an K are fitting constant; k (1/s), called adsorption time constant, could be used to determine the diffusion coefficient ( k=15Dr2 , D (m 2 /s) is the diffusion coefficient and r (m) is the adsorbent particle radius), L (m) is the bed length, and v (m/s) is the flow velocity. The breakthrough time ( t ) is taken in seconds.

For example, Fig.  11 shows the analytical and experimental adsorption breakthrough of carbon dioxide adsorbed by MWCNT/Mg-MOF-74 composites. The analytical results using Eq. ( 3 ) provide a good indication to the whole adsorption time and behavior that are as close as to those of the experimental curves. The time constant values ( k ) obtained from analytical curves are 0.258, 0.248, 0.164, 0.392, 0.433, 0.368, and 0.255 1/s for Mg-MOF-74, MFC1, MFC2, MFC3, MFC4, MFC5, and MFC6, respectively.

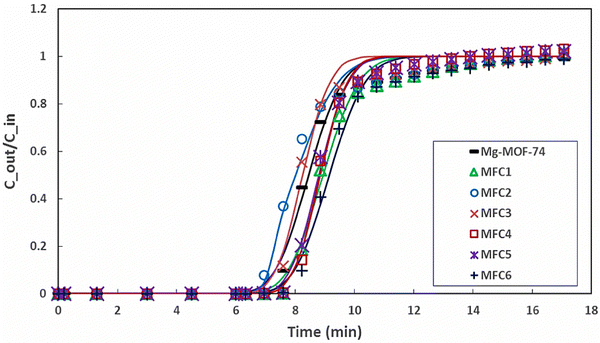

Fig. 11

Analytical representation of CO 2 breakthrough curves of MWCNT/Mg-MOF-74 composites; solid lines are analytical results; symbols are experimental data

To evaluate the improvements of CO 2 adsorption capacity and breakpoint by adding MWCNT to Mg-MOF-74 and to MIL-100(Fe), the adsorbed amounts of CO 2 have been calculated from the experimental breakthrough curves using Eq.  1 . The maximum CO 2 adsorption capacity for base Mg-MOF-74 and MIL-100(Fe) calculated from the respective breakthrough curve was estimated to be about 5.46 and 0.37 mmol/g, respectively. The maximum CO 2 uptakes along with the adsorption breakpoint ratios for Mg-MOF-74 as well as each of the six MWCNT/Mg-MOF-74 composites are displayed in Fig.  12 a. As evident, each of the six composites, except MFC2 and MFC3, exhibited a good improvement over pristine Mg-MOF-74 with regard to both the adsorption capacity and the adsorption breakpoint ratio values. More specifically, the most optimum combination of adsorption capacity and breakpoint ratio values have been evaluated for MFC6 which has shown an improvement of 7.35 and 8.03% over pristine Mg-MOF-74 for adsorption capacity and breakpoint ratio, respectively. This pair of statistics was followed by MFC1, MFC4, and MFC5 composites for which the corresponding improvements in adsorption capacity and breakpoint values over pristine Mg-MOF-74 have been evaluated to be 4.43 and 5.71, 2.21 and 7.3%, and 1.49 and 4.98%, respectively. It is worth mentioning here that each of the MFC6, MFC1, and MFC4 composites has already been characterized for lower values of heat of adsorption for CO 2 in comparison with pristine Mg-MOF-74, as shown earlier in Fig.  8 a. This, theoretically, implies that each of these composites should not only exhibit higher CO 2 uptake values than pristine Mg-MOF-74, but also require comparatively lower energy for regeneration process (recycling recovery).

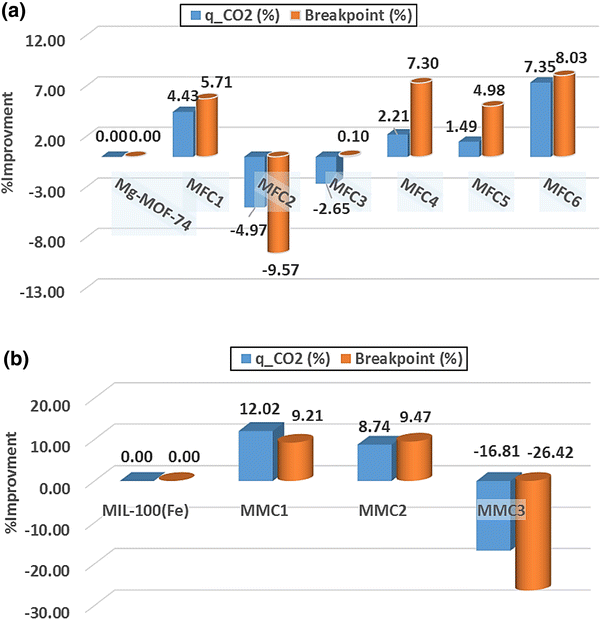

Fig. 12

CO 2 uptake (cubic bars) and adsorption breakpoint (cylindrical bars) enhancements for a MWCNT/Mg-MOF-74 and b MWCNT/MIL-100(Fe) composites measured at 297 K

Figure  12 b shows the improvement in both adsorption capacity and breakpoint due to adding MWCNT to the pristine MIL-100(Fe). As evident, MMC1 exhibited an optimal improvement reaches 12.02 and 9.21% for CO 2 adsorption capacity and breakpoint, respectively. This improvement was followed by MMC2 for measured adsorption uptake and breakpoint about 8.74 and 9.47%, respectively, comparing with the base adsorbent (MIL-100(Fe)). On the contrary, the evaluated adsorption uptake and breakpoint improvement values for MFC2, MFC3, and MMC3 showed lower performance than the base adsorbents. This attribute indicates that there is no a uniform improvement can be obtained for the incorporation of CNT with MOFs. The detected improvement in the CO 2 adsorption capacity and breakpoint primarily refers to an improvement in the thermal properties of Mg-MOF-74 and MIL-100(Fe) frameworks upon the incorporation of MWCNTs [ 30 , 31 – 32 ]. As the thermal conductivity of CNT is significantly high (2000–5000 W m −1 K −1 ) [ 62 ], the MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites’ effective thermal conductivity values could accordingly be higher than those of pristine adsorbents (0.2–0.4 W m −1 K −1 ). Therefore, the heat diffusion across the bulk composites is enhanced during adsorption processes, which helps in cooling down the adsorbent and enhances CO 2 adsorption uptake. Furthermore, the enhancement of effective thermal conductivity of adsorbents helps in quickly heating the adsorbent particles during and desorption process which in turns accelerating the CO 2 evacuation from the adsorbent.

This research confirms a comparative dynamic CO 2 uptake compared to the published data shown in Table  3 . The MIL-100(Fe) shows the lowest values of adsorption in a comparison to AC, 13X and Mg-MOF-74, while Mg-MOf-74 and MFC6 have the highest CO 2 uptake. Mg-MOF-74 dynamic CO 2 uptake was about 5.46 mmol/g which is greater than 4.06 mmol/g reported in the literature [ 17 , 50 ], because it was, in this study, measured at 20% CO 2 molar fraction. The cost of adding very low quantity of MWCNT (< 1.5 wt%) to the adsorbents is believed to be neglected in a comparison to the CO 2 separation improvements.

Table 3

Dynamic CO 2 uptake of adsorbents

Adsorbent

Temperature (K)

CO2 vol%

CO2 capacity (mmol/g)

References

Mg-MOF-74

298

15

4.06

[17, 50]

AC

301

20

0.734

[42]

MIL-101(Cr)

298

10

0.49

[63]

13X

297

20

2.56

[64]

CNT/13X

297

20

3.29

[64]

Mg-MOF-74

297

20

5.46

This work

MFC6

297

20

5.86

This work

MIL-100(Fe)

297

15

0.37

This work

MMC1

297

15

0.41

This work

In the literature, chemists usually use the adsorption isotherm data to compare the CO 2 capacities of different adsorbents. However, we found out by carrying both adsorption isotherm measurements and adsorption breakthrough experiments that they can give different ratings of adsorption capacity. Keeping in mind that adsorption isotherm measurements are taken under constant temperatures, while the breakthrough measurements are not, as the breakthrough bed is allowed to vary its temperature due to the heat dissipation from the adsorbent to the ambient or surrounding environments. The improved thermal diffusion cools down the adsorbent quickly. Therefore, the cooler is adsorbent, the higher is CO 2 uptake which is also confirmed in the isotherms. The most accurate adsorption capacity if we are joining to use a PSA/VSA/TSA is that measured in a breakthrough setup.

Conclusions

Two types of MOFs, Mg-MOF-74 and MIL-100(Fe), were synthesized and incorporated with MWCNTs. In total, seven compounds of Mg-MOF-74 materials containing 0, 0.1, 0.25, 0.5, 0.75, 1, and 1.5 wt% MWCNTs and four compounds of MIL-100(Fe) involving 0, 0.1, 0.25, and 0.5 wt% MWCNT have been characterized for the degree of crystallinity, intrinsic porosity, CO 2 adsorption capacity and separation, and dynamic adsorption breakthrough tests. The powder X-ray diffraction patterns as well as the porosity-related parameters for each of the composites did not include any substantial variation in peak intensities and peak locations, BET surface area, and pore volume and size, indicating that the crystal lattices of Mg-MOF-74 and MIL-100(Fe) were unaffected by the incorporation of MWCNTs using the physical mixing (up to 1.5 wt% MWCNT for Mg-MOF-74 and 0.5 wt% MWCNT for MIL-100(Fe).

Equilibrium adsorption isotherms of CO 2 measured at 273, 298, and 313 K, and N 2 adsorption isotherms measured at 298 K confirm that the highest adsorption capacities for each of these two gases are exhibited by Mg-MOF-74 and 0.25 wt% MWCNT/MIL-100(Fe) (MMC2). Overall, the MWCNT/Mg-MOF-74 composites have much larger adsorption uptake values than those of MWCNT/MIL-100(Fe) composites.

The key performance evaluation of the MWCNT/Mg-MOF-74 and MWCNT/MIL-100(Fe) composites has been achieved through the measurement of actual time-variant CO 2 breakthrough curves, which have revealed a good improvement in CO 2 adsorption capacity as well as adsorption breakpoint due to the incorporation of MWCNTs in the Mg-MOF-74 and MIL-100(Fe) frameworks. The most optimum combination of these characteristics has been observed for an incorporation of 1.5 wt% MWCNTs in Mg-MOF-74, MFC6, which has adsorption capacity of 5.86 mmol/g with corresponding heat of adsorption about 28.27 kJ/mol against 5.46 mmol/g and 30.02 kJ/mol for pure Mg-MOF-74. The estimated improvements of CO 2 adsorption capacity and breakpoint, obtained from breakthrough using 1.5 wt% MWCNTs/Mg-MOF-74, were about 7.35 and 8.03% over pristine Mg-MOF-74. The incorporation of 0.1 wt% MWCNTs in MIL-100(Fe), MMC1, moreover, improves the adsorption capacity to about 0.414 mmol/g with low corresponding heat of adsorption about 18.34 kJ/mol in comparison to 0.370 mmol/g and 27.20 kJ/mol for MIL-100(Fe). The adsorption uptake and breakpoint enhancements of 0.1 MWCNT/MIL-101(Fe) over pristine MIL-100(Fe) were about 12.02 and 9.21%, respectively.
