The development of fly ash-supported CaO derived from mollusk shell of Anadara granosa and Paphia undulata as heterogeneous CaO catalyst in biodiesel synthesis

Materials

Palm oil and mollusk ( A. granosa and P. undulata ) shells were obtained from local market in Semarang, Indonesia. The free fatty acid (FFA) content of the palm oil was 0.16 %. Coal fly ash was collected from Paiton power plant, Indonesia. Methanol and reagent grade CaCO ₃ were purchased from Merck.

Catalyst preparation

Prior to preparation, the mollusk shells were cleaned from its impurities. The shells were then dried in an oven at 110 °C for 6 h and were crushed and ground to fine powder then sieved at 100 μm. The fine powder of shell and reagent grade CaCO ₃ was calcined at 800 °C for 3 h to generate CaO. Coal fly ash was dried in an oven at 105 °C for 10 h. The fly ash-supported CaO catalyst was prepared according to the wet impregnation method [ ¹⁸ ] which was also described in the previous paper [ ¹⁹ ].

Catalyst characterizations

To determine the crystallinity nature of fly ash-supported CaO catalysts, X-ray diffraction (XRD) patterns for supported catalysts samples were analyzed using Cu-Kα procedure. The analysis was performed at 2 θ angle ranging from 10° to 90° at a scanning speed of 2° min ⁻¹ . The surface morphology of the developed catalysts was determined using scanning electron microscope (SEM), while crystalline size of catalyst was calculated from the XRD data using Scherrer’s formula [ ²⁰ ]

This equation was developed to calculate the nano crystallite size ( D ) by XRD radiation of wavelength λ (nm) from measuring full width at half maximum of peaks ( β ) in radian located at any 2 θ in the pattern. The Scherrer constant ( K ) = 0.9 as the crystal was to be more spherical shapes.

The properties of catalyst were revealed by FTIR spectroscopy on a Win Bomem 1000 instrument in the region of 4000–400 cm ⁻¹ . Before the recordings, the catalyst samples were exposed to phenol vapors to investigate the basic nature of surface sites, and afterward exposed to vacuum to remove any physically adsorbed vapors. The EDS elemental composition [particularly the calcium (Ca) concentration] was semi-quantitatively expressed in terms of weight percentages using Oxford Instruments INCA 400. In addition, X-ray diffraction (XRD) was also utilized as a quantitative determination of the CaO concentration within the catalysts.

Transesterification process

Methanolysis of refined palm oil was conducted in a 500-mL round bottom flask which was equipped with a reflux condenser and a magnetic stirrer. About 35 mL of palm oil was added into the bottom flask with amount of catalysts of 2–10 % and at constant methanol to oil mole ratio (12:1). The mixture was then stirred for a few minutes to make uniformly mixed oil-catalyst slurry and heated at 70 °C for 2 h. The catalyst was separated from its mixture using a vacuum pump. The mixture of product, methanol, and glycerol was separated in a funnel, and the excess methanol was recovered using a rotary evaporator. The biodiesel product was characterized using gas chromatography (GC).

Reusability cycle was tested through transesterification condition of 6 % catalyst, methanol:oil mole ratios = 12:1, reaction temperature of 60 °C, 2-h reaction time, and 700-rpm stirring speed. After each cycle, the spent catalyst was regenerated using methanol washing and dried in an oven at 110 °C for 12 h.

Gas chromatography analysis

The biodiesel product was analyzed by GC according to European Standard EN 14103:2011. The analysis was carried out using a GC Agilent 7890 Series with a flame ionization detector (FID). The column was HP-INNOWax with dimensions of 30 m × 0.25 mm × 0.25 μm, and helium was used as the carrier gas. The split/splitless inlet temperature was at 250 °C, split flow 100 mL min ⁻¹ , column temperature at 60 °C for 2 min, 10 °C min ⁻¹ to 200 °C, 5 °C min ⁻¹ to 240 °C, and hold 240 °C for 7 min. The detector temperature was at 250 °C. Biodiesel was analyzed by injecting 1 μL of sample into GC, and the total ester content was calculated using the integrated peak areas of the methyl esther identified in the samples.

Biodiesel physicochemical properties determination

The measured properties of biodiesel were: (1) kinematic viscosity according to ASTM D 445; (2) density measured according to ASTM D 1298 method; and (3) cetane number (CN) calculated according to a multiple linier regression developed by Piloto-Rodriguez et al. [ ²¹ ] as function of the methyl ester composition found in biodiesel.

X-ray diffraction (XRD)

X-ray diffraction analysis has been identified by matching the data with Joint Committee for Powder Diffraction Standard (JCPDS). The characterization of Paiton coal fly ash showed that SiO ₂ is in the crystalline phase at 2 θ  = 21.0°; 26.7°; 35.8°, while Al ₂ O ₃ is in amorphous phase. These compounds are oxide material which can be generally used as a catalyst support (Fig.  ¹ ). The presence of dicalcium silicate (Ca ₂ SiO ₄ ) crystalline phase was observed at 2 θ  = 34° in the catalysts (Table  ¹ ). The formation of dicalcium silicate was due to the formation of dicalcium silicate hydrate (Ca ₂ SiO ₄ ·H2O) through reaction between silica (SiO ₂ ) and CaO in the presence of water during the wet impregnation preparation process [ ² ]

Fig. 1

Table  ¹ also shows the CaO content in the fly ash and catalysts. It shows that CaCO ₃ has the highest CaO contents followed by A. granosa and P. undulata shells.

Scanning electron microcopy (SEM)

Figure  ² shows SEM images of the fly ash-supported CaO catalyst. The fly ash-supported CaO catalyst derived from CaCO ₃ grade demonstrates a relatively smaller morphology size of particles compared with P. undulata and A. granosa , which also subsequently increases its surface area. The fly ash-supported CaO catalyst derived from CaCO ₃ had the size distribution less than 30 μm. The fly ash-supported CaO catalyst derived from P. undulata shell produces molecular size less than 75 μm, while A. granosa shell produces molecular size less than 85 μm. SEM image also shows the structure agglomeration, because the metal oxide formed by heat treatment [ ² ].

Fig. 2

FTIR studies

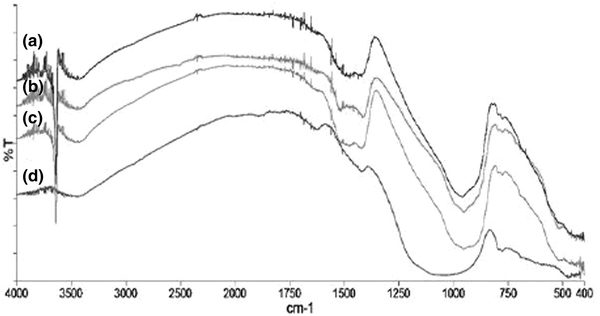

The FTIR spectra of fly ash-supported CaO catalysts are shown in Fig.  ³ . This technique was employed to characterize the surface absorbed species, such as carbonates and hydroxides of CaO supported on the fly ash. The absorption bands at 1419, 774, and 670 cm ⁻¹ were actually CO ₃ ²⁻ ions. The appearance of this adsorption band with similar intensity for all the three catalysts may be attributed to the basic carbonates generated by the adsorption of gaseous CO ₂ from atmosphere onto catalysts [ ¹² ]. The adsorption band at 953 cm ⁻¹ was Si–O–Ca bond from Ca ₂ SiO ₄ that generated from reaction of CaO and SiO ₂ . The FTIR band at 3644 cm ⁻¹ was ascribed to the stretching vibrations of surface hydroxyl groups (Ca–OH) and physisorbed moisture. The surface carbonate and hydroxyl species existed due to the catalyst exposure to the air. The FTIR results clearly showed the tendency of CaO to react with moisture and CO ₂ in air.

Fig. 3

Transesterification

The amount of catalyst used in the transesterification is shown in Fig.  ⁴ . For all heterogeneous catalyst types, the increase in catalyst amount also increases the yield of biodiesel and higher than the yield obtained by the homogenous catalyst (NaOH). This is due to the increase in the active site in the catalysts. The largest yield was shown at the amount of catalyst of 6 %, and afterward, the yield decreases. It is because of the emulsions formation that increases the viscosity of the mixture, which causes difficulty in mixing the reactants, catalysts, and products [ ²² , ²³ ].

Fig. 4

Comparison of the use of resources CaO on the fly ash-supported CaO catalysts can be seen in Table  ¹ . The experiment also showed that the mollusk shell-based catalysts are highly very active to catalyze the transesterification of palm oil. All fly ash-supported CaO catalysts produced yields more than 75 % after 2 h of reaction. The fly ash-supported CaO catalyst derived from CaCO ₃ and P. undulata could gain biodiesel yield up to 94 %, while CaO catalyst derived from A. granosa achieved 92 % yield.

It also shows that the particle size has contribution in the transesterification, especially affecting the catalyst activity. The order of size of particles produced in this research is the fly ash-supported CaO catalyst ( A. granosa ) > fly ash-supported CaO catalyst ( P. undulata ) > fly ash-supported CaO catalyst (CaCO ₃ ). The use of heterogeneous catalysts is influenced by the size of catalyst particles [ ¹¹ ]. A small particle size of the catalyst has a large surface area and, therefore, producing greater yield. In addition, the heterogeneous fly ash-supported CaO catalyst also forms dicalcium silicate (Ca ₂ SiO ₄ ) which increases the activity of the catalyst.

Biodiesel products

Characterization of biodiesel was conducted using a gas chromatography (GC) Agilent based on method EN14103:2011 [ ²⁴ ]. The run time of 30 min were used in accordance with the method of EN14103:2011. It was found that the highest content in the biodiesel was methyl oleic and methyl palmitic, while other components were found in small quantities (Table  ² ).

The density and viscosity of the obtained biodiesel have already fulfilled the ASTM standard. According to ASTM D-1298, a standard density of biodiesel from 0.82 to 0.90 g cm ⁻³ and a viscosity of 2.0–5.0 cSt [ ²⁵ ]. From the results, the biodiesel has the density ranges from 0.87 to 0.89 g cm ⁻³ with a viscosity of 3.85–4.43 cSt. The predicted cetane number (Eq.  ² ) was less than 60.0, indicating that the produced biodiesel was very suitable for engine performance. This cetane number was mainly affected by high composition of methyl oleate (9) and methyl palmitate (C16:0) with contents of 58.44 and 37.17 %, respectively (Table  ³ ).

As compared with other sources of heterogeneous catalyst, this study showed comparable finding with respect to biodiesel yield (Table  ⁴ ). Biodiesel yield obtained from catalyst egg shells, snail shells, and Meretrix venus only achieved 92 % [ ¹¹ ], which was higher than shrimp shell and horn shell (<90 %) [ ²³ , ²⁶ ]. These results indicated that the mollusk shells of A. granosa and P. undulata have great potential for improving yield biodiesel.

Reusability study

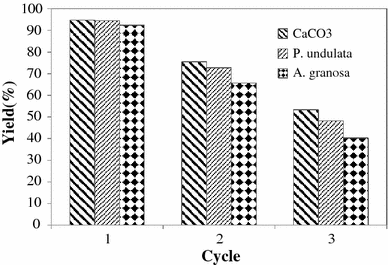

Figure  ⁵ shows that the yield of biodiesel dropped to 53.76, 40.23, and 46.76 % for spent catalysts derived from CaCO ₃ , A. granosa, and P. undulata after the third cycles. The results indicated a slight catalyst deactivation because of the leaching of the CaO active species into the reaction medium [ ²⁷ ]. The decrease in CaO contents are shown in Table  ⁵ .

Fig. 5

The dissolution of CaO into alcoholic phase also causes the deactivation of active sites, and thus, it leads concentration of CaO decrease. Moreover, CaO will also dissolve in products, such as glycerol and biodiesel, and therefore reducing the amount of CaO in the catalyst. The decrease in yield could also be attributed to catalyst deterioration due to poisoning by glycerol and soap present in reaction mixture. The presence of calcium glyceroxide in the spent catalyst could possibly be a factor for its reduced reusability. Calcium glyceroxide is formed through the reaction of CaO and glycerol [ ²⁸ ].

Figure  ⁶ shows the FTIR analysis of the catalyst after the second recycles. The CaO-based catalyst derived from calcined P. undulata, A. granosa shells, and CaCO ₃ shows the identical FTIR patterns. The functional group in the catalyst has been detected at the wavelength of 3639.2, 3365.7, 2652.7, 1550.7, and 1463.9, while CaO was detected at 725, 877, 1430, 1785, and 2530 cm ⁻¹ . As compared with Fig.  ³ , there is difference in the peaks indicated that CaO in the catalyst reduces. At peaks of 3639.2 and 3365.7 cm ⁻¹  there were vibrations of OH-bonds such as Si–OH or Ca–OH bonds, while absorption around 2652.7 cm ⁻¹  suggesting that SiO ₂  was generated. In addition, groups of –C–H and –CH ₂ – were indicated by their appearance at 1550.7 and 1463.9 cm ⁻¹ , respectively. These organic groups also show the vibration of –C–H and –CH2– groups, which probably from triglyceride entrapped in the catalysts.

Fig. 6

The XRD pattern of catalyst derived from calcined P. undulata and CaCO ₃ is shown in Fig.  ⁷ . These diffractograms showed that both recycled catalysts have identical patterns, and CaO compound was detected at 2 θ  = 32, 37, 53, 64, and 67. The largest portions are detected at 2 θ  = 32, 37, while at 2 θ  = 53, 64, and 67, CaO compound is presence in small quantities. This is probably due to reaction of CaO with methanol to form calcium methoxide during esterification reaction.

Fig. 7

The study of the reusability revealed that the mollusk shells of P. undulata and A. granosa could be effectively utilized as low -cost-supported-based catalyst for biodiesel production.
